![09352310423](https://apctech.com//media/amasty/shopby/option_images/Harting.png)
09352310423
09352310423
Harting

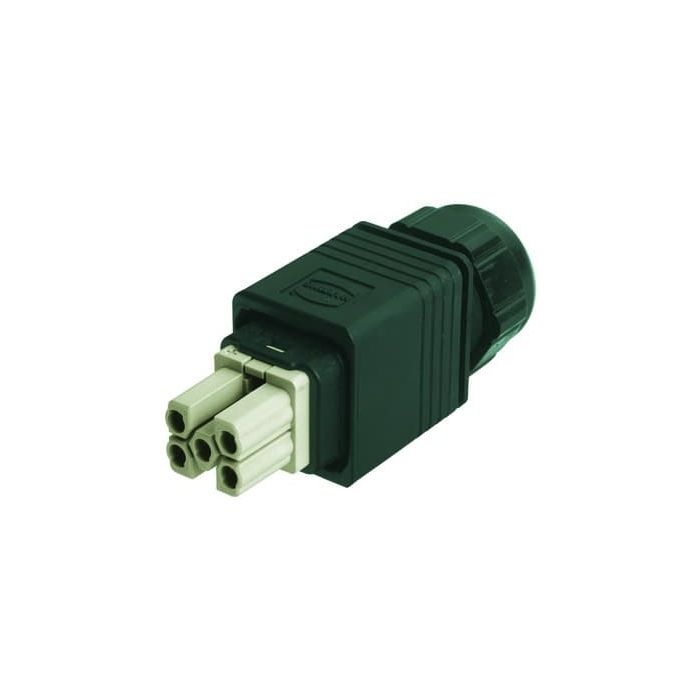

Han PP Power 4/0 F Plastic Crimp PG13
Connectors, Crimp termination, Rated current:16 A, Contacts: 5, PushPull, Material: Thermoplastic, Degree of protection: IP65, IP67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | Han PushPull |
Product Family | Han PushPull |
Product Brand Name | 09 35 231 0423 |
Manufacturer | HARTING |
Customs tariff number | 85389099 |
Quantity Min | 1.0000 |
Quantity Interval | 1.0000 |
Country of origin | DE |
Manufacturer's Brand | Han® PushPull (V14) |
Material housing | Plastic |
Number of poles | 5.0000 |
Degree of protection - IP (mounted) | IP65 |
PE connection present ? | No |
Rated voltage (V) | 690.0000 |
Material of insulation | Thermoplastic |
Rated_surge_voltage (V) | 8.0000 |
Conductor connection method | crimp connection |
Conductor cross-section mm2 | 0.25…2.5 |
Interlock type | Push pull |
Locking present ? | Yes |
Fire resistance class | V0 |
Standards | IEC 61076-3-118 |
Current Rating (A) | 16.0000 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
