09380052701
09380052701
Harting

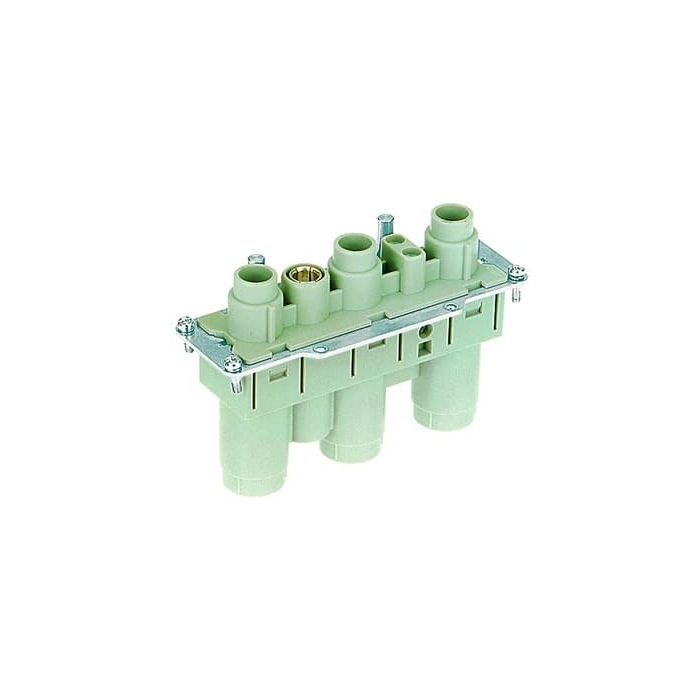

Han K 3/2 Pos. Female Insert Screw
Inserts, Axial screw termination / screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:200 A, Size: 24 B, Contacts: 3, + 2 additional signal contacts, Conductor cross-section: 35...70 mm, 0.5...2.5 mm Signal, 16...35 mm PE, Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 404 Han-Com® |
| Product Family | Han K Female Insert |
| Product Brand Name | 09 38 005 2701 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Com® |
| Size | 24 B |
| Number of poles | 3.0000 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | Yes |
| Contact design | Socket |
| Rated_surge_voltage (V) | 8.0000 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Axial screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 35…70 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 200.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
