09452812560333
09452812560333
Harting

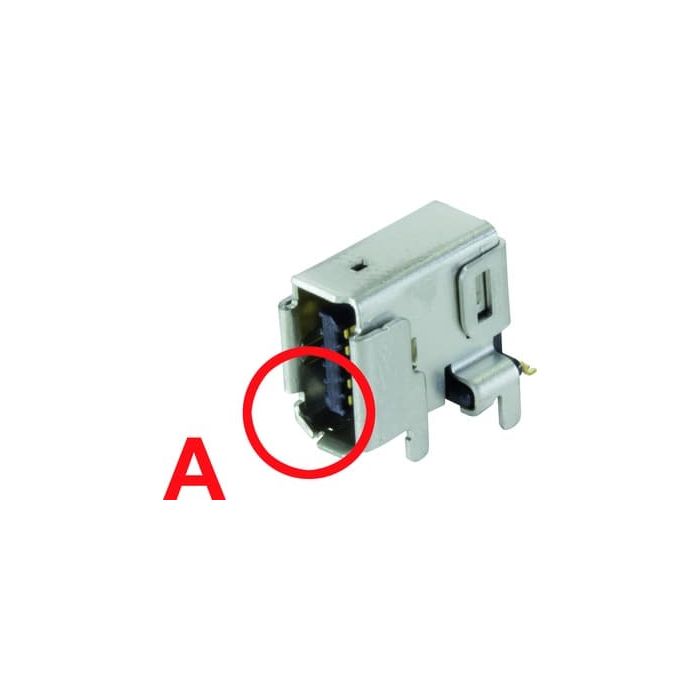

ix Industrial 10A-1 jack AV (1pcs.)
Connectors, PCB connector, Angled, Solder termination, Rated current:1.5 A, Contacts: 8, + 2x GND, Copper alloy, Au over Ni, Coding: Type A, Liquid crystal polymer (LCP), Grey
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | HARTING ix |
| Product Family | HARTING RJ Industrial |
| Product Brand Name | 09 45 281 2560 333 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | JP |
| Type of packaging | Sample |
| Number of poles | 8 |
| Material contact surface | Nickel/gold |
| Degree of protection - IP (mounted) | IP20 |
| Material of insulation | Liquid crystal polymer |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | Solder termination |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1.5 |
| Temperature Range | -40 to 85 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
