09461453421
09461453421
Harting

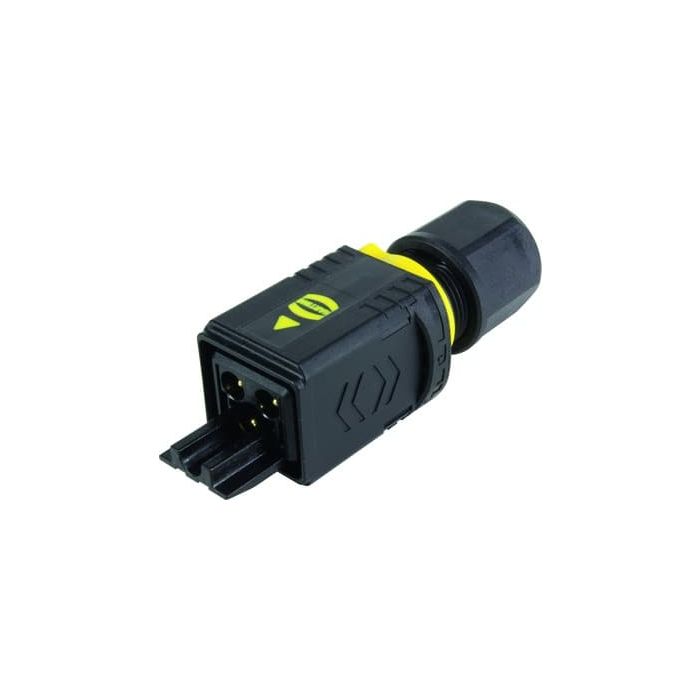

PushPull V4, power, 250V/16A, w/o cont.
Connectors, Crimp termination, Rated current:16 A, Contacts: 2, PushPull, Material: Thermoplastic, Degree of protection: IP65, IP67
In stock
| Attribute | Value |
|---|---|
| Product Segment | HARTING PushPull Power |
| Product Family | HARTING PushPull |
| Product Brand Name | 09 46 145 3421 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | RO |
| Manufacturer's Brand | HARTING PushPull (V4) |
| Material housing | Plastic |
| Number of poles | 2 |
| Degree of protection - IP (mounted) | IP65 |
| PE connection present ? | Yes |
| Rated voltage (V) | 250 |
| Rated_surge_voltage (V) | 4 |
| Conductor connection method | crimp connection |
| Conductor cross-section mm2 | 0.75…2.5 |
| Interlock type | Push pull |
| Locking present ? | Yes |
| Fire resistance class | V0 |
| Standards | IEC 61076-3-106 |
| Current Rating (A) | 16 |
