Harting

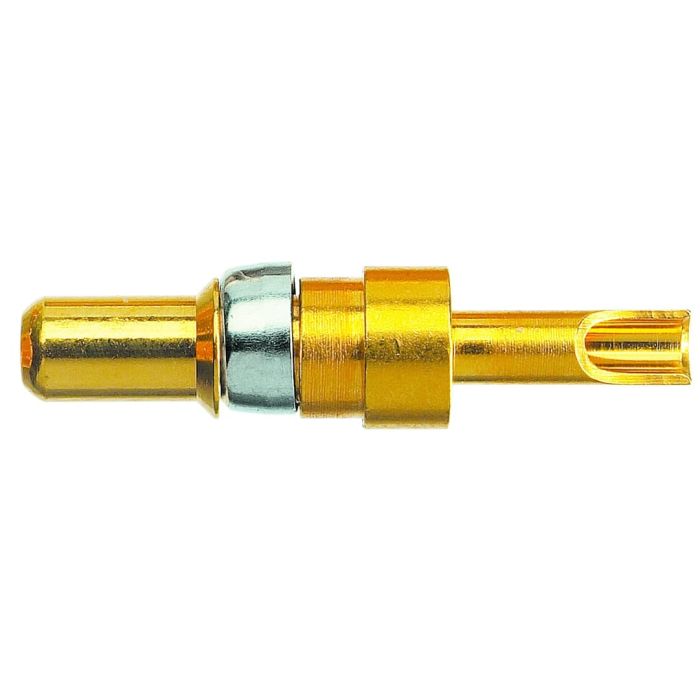

D SUB MIXED MA 20 A S POWER CONTACT PL3
Solder contact, Straight, Operating current: ≤20 A, Male, Copper alloy, 0.2 µm Au / 5 µm Sn (mating side / termination side), Conductor cross-section: 2.54...5.31 mm, AWG 14 ... AWG 12
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | DSub Combo |
| Product Family | D-Sub |
| Product Brand Name | 09 69 281 7421 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 100 |
| Quantity Interval | 100 |
| Country of origin | DE |
| Manufacturer's Brand | D-Sub |
| Material contact surface | 0.2 µm Au / 5 µm Sn (mating side / termination side) |
| Insertion cycles minimum | 200 |
| Maximum operating ambient temperature (deg C) | 155 |
| Contact type | turned |
| Insulation stripped length (mm) | 7.5 |
| Contact design | Pin |
| Maximum connectable conductor cross section (mm2) | 5.31 |
| Minimum connectable conductor cross section (mm2) | 2.54 |
| Material contact | Other copper alloys |
