09700142613
09700142613
Harting

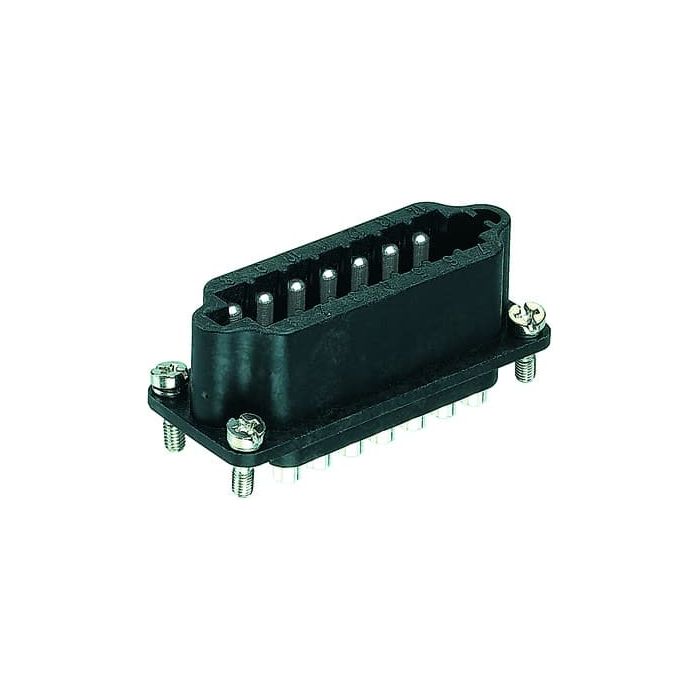

STAF 14 STI-L
Inserts, Solder termination, Male, Polyamide (PA), Black, Rated current:10 A, Size: 10 A, Contacts: 14, Conductor cross-section: 2.5 mm, Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 422 Staf Inserts |
| Product Family | Staf Insert M |
| Product Brand Name | 09 70 014 2613 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Staf® |
| Size | 10 A |
| Number of poles | 14.0000 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Rated voltage (V) | 25.0000 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 0.8 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Soldered connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 2.5 max |
| Material contact | Other copper alloys |
| Fire resistance class | HB |
| Standards | EN 60664-1 |
| Current Rating (A) | 10.0000 |
