Harting

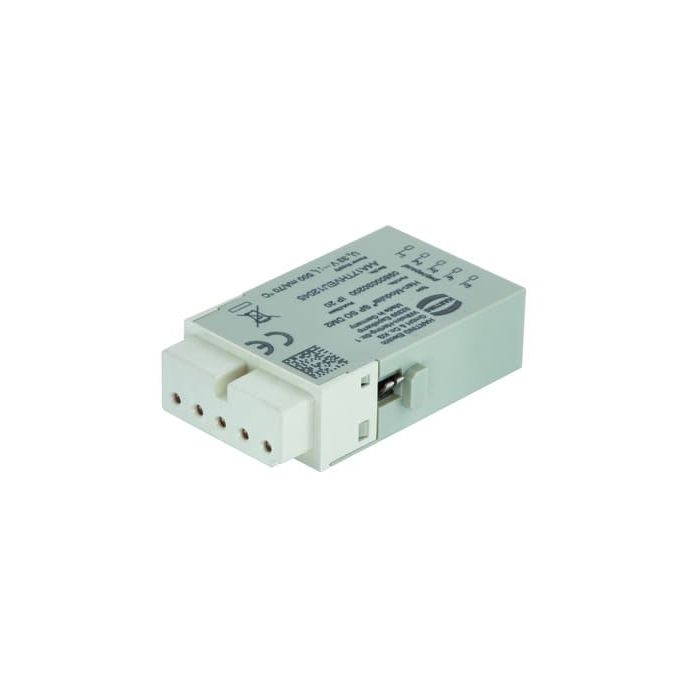

Han-Modular SP SO DM2
Han-Smart® Surge protection module, Two channels, Differential mode without common refence potential, Push-in-spring-cage termination, Female, Contacts: 5, Conductor cross-section: 0.25...1.5 mm, Polyamide (PA), RAL 7032 (pebble grey)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 081 Han-Smart® |
| Product Family | Han-Smart® |
| Product Brand Name | 09 80 003 0200 |
| Manufacturer | HARTING |
| Customs tariff number | 85363010 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 5.0000 |
| Number of power contacts | 5.0000 |
| Insertion cycles minimum | 500.0000 |
| Contact type | Push-in-spring-cage termination |
| Insulation stripped length (mm) | 8.0000 |
| Contact design | Socket |
| Conductor connection method | Plug terminal connection |
| Conductor cross-section mm2 | 0.25…0.25 |
| Contact insert material | Plastic |
| Fire resistance class | V0 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
