1.202.4201.11
1.202.4201.11
Hummel

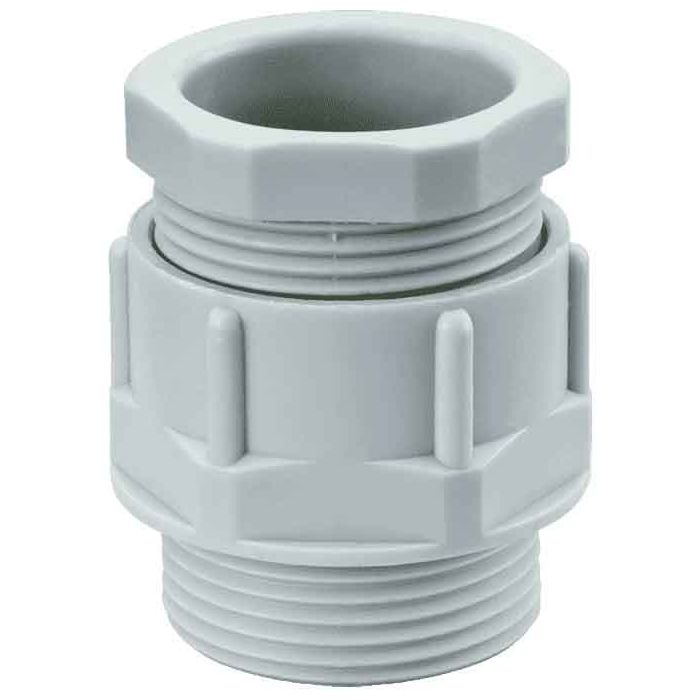

Cable gland made of polyamide DIN 46320
Cable gland made of polyamide DIN 46320 Protection class - IP 54, IP 65 in case of additional flat seal at connection thread. Version - short. Seal - NBR
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1202420111 |
| Colour | grey |
| Weight (kg) | 0.08065 |
| Further information | Metric threads available upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878409329 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 44 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 42 |
| Cable diameter (mm) | 29 – 40 |
| Wrench size SW1 / SW2 (mm) | 55/60 |
| Protection class | IP 54, IP 65 in case of additional flat seal at connection thread |
| Material | Polyamide |
| Seal | NBR |
| Thread length (mm) | 13 |
| RAL | 7035 |
| Variant | PG |
| Wrench size 1 (SW1) [mm] | 55 |
| Wrench size (SW) [mm] | 60 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 21 - 30 |
| Maximum cable diameter (mm) | 31 - 40 |
| Temperature Range | -20°C to +80°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
