Hummel 1.215.1601.14 Cable gland made of polyamide with strain relief for hazardous areas

1.215.1601.14

1.215.1601.14

Hummel

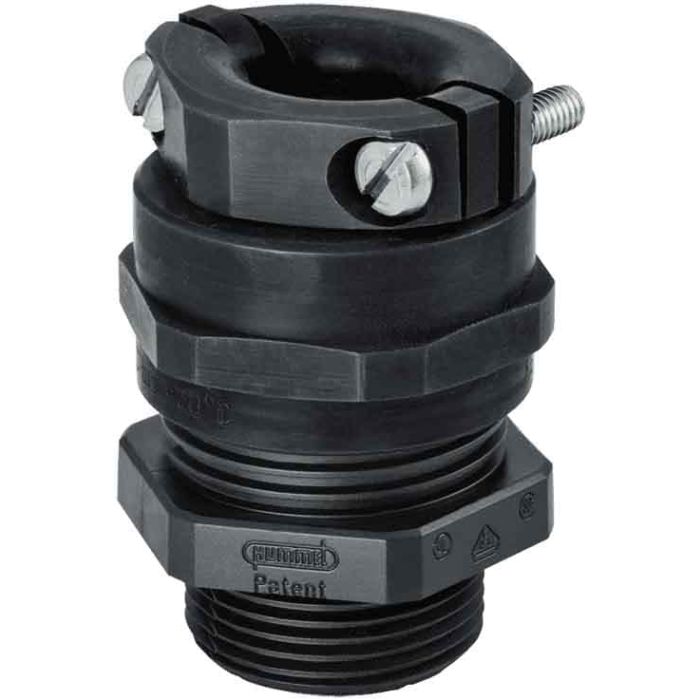

Cable gland made of polyamide with strain relief for hazardous areas

Cable gland made of polyamide with strain relief for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
In stock
£0.31
More Information
Attribute Value
Product Brand Name 1215160114
Colour black
Weight (kg) 0.02679
Customs tariff number 76169990
EAN code 4033878411988
ETIM 7 EC000441
Packaging Unit 50
Height (mm) 37.5
Certificates INMETRO, IECEx, CE, DNV-GL, EAC, ATEX
Version short
External thread (AG) PG 16
Material seals / O-rings NBR
Cable diameter (mm) 10 – 14
Wrench size SW1 / SW2 (mm) 27/27
Protection class IP 68 – 10 bar, IP 69 K
Material Aluminium, Polyamide
Seal NBR
Thread length (mm) 10
RAL 9005
Variant PG
Tightening torque [Nm] 5
Wrench size 1 (SW1) [mm] 27
Wrench size (SW) [mm] 27
Ex-protection level II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb
Norms RoHS
Minimum cable diameter (mm) 0 - 10
Maximum cable diameter (mm) 11 - 20
Temperature Range -20°C to +70°C
More Information
Attribute Value
Data Sheet Click here to view
