1.292.4001.30
1.292.4001.30
Hummel

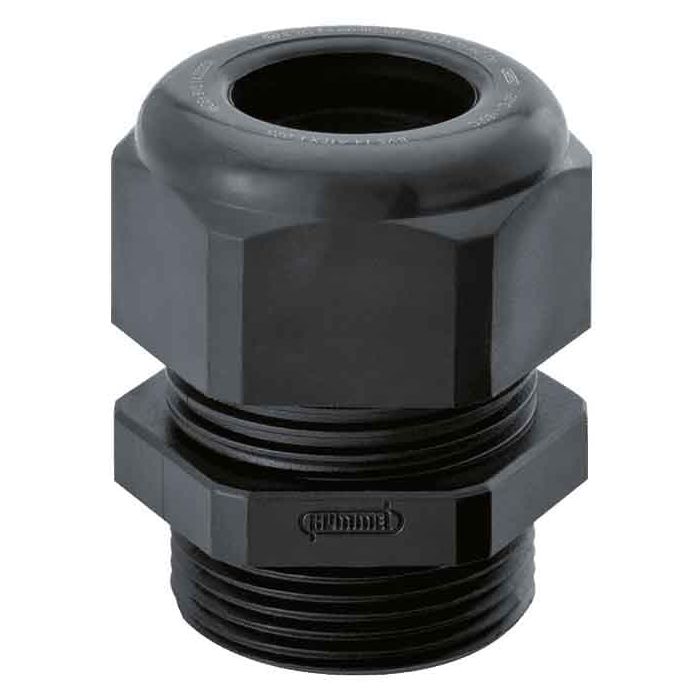

Cable gland made of glass fibre reinforced polyamide for hazardous areas
Cable gland made of glass fibre reinforced polyamide for hazardous areas Protection class - IP 68 – 10 bar. Version - long. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1292400130 |
| Colour | black |
| Weight (kg) | 0.0775 |
| Customs tariff number | 39269097 |
| EAN code | 4033878416549 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 48 |
| Certificates | INMETRO, ATEX, IECEx, cCSAus, EAC, CE |
| Version | long |
| External thread (AG) | M40 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 22 – 32 |
| Wrench size SW1 / SW2 (mm) | 53/53 |
| Protection class | IP 68 – 10 bar |
| Material | Polyamide, fiber reinforced |
| Seal | NBR |
| Thread length (mm) | 18 |
| RAL | 9005 |
| Variant | Metric-long |
| Tightening torque [Nm] | 10 |
| Wrench size 1 (SW1) [mm] | 53 |
| Wrench size (SW) [mm] | 53 |
| Ex-protection level | Class I Div 2 Groups A,B,C,D, Class II Div 1 Groups E,F,G , II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Norms | RoHS |
| Minimum cable diameter (mm) | 21 - 30 |
| Maximum cable diameter (mm) | 31 - 40 |
| Temperature Range | -20°C to +85°C |
