1.293.1600.61
1.293.1600.61
Hummel

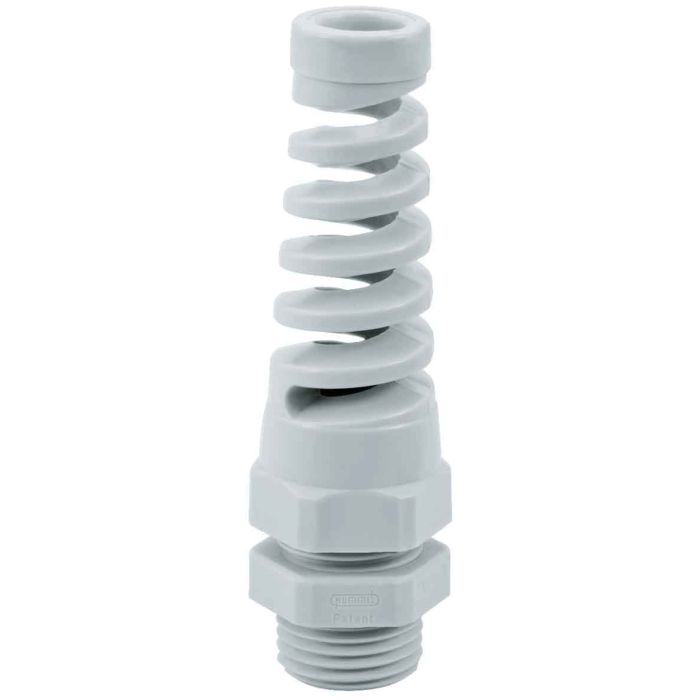

Cable gland made of polyamide with bend protection
Cable gland made of polyamide with bend protection Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - long. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1293160061 |
| Colour | grey |
| Weight (kg) | 0.02601 |
| Further information | With additional pre-assembled O-Ring upon request, Other sealing material e.g. Silicone upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878417416 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 100 |
| Certificates | UL, CSA, DNV-GL, cUL, CE |
| Version | long |
| External thread (AG) | PG 16 |
| Cable diameter (mm) | 7 – 12 |
| Wrench size SW1 / SW2 (mm) | 27/27 |
| Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
| Material | Polyamide |
| Seal | NBR |
| Thread length (mm) | 15 |
| RAL | 7035 |
| Variant | PG.-long |
| Tightening torque [Nm] | 3.5 |
| Wrench size 1 (SW1) [mm] | 27 |
| Wrench size (SW) [mm] | 27 |
| d (mm) | 15.5 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
