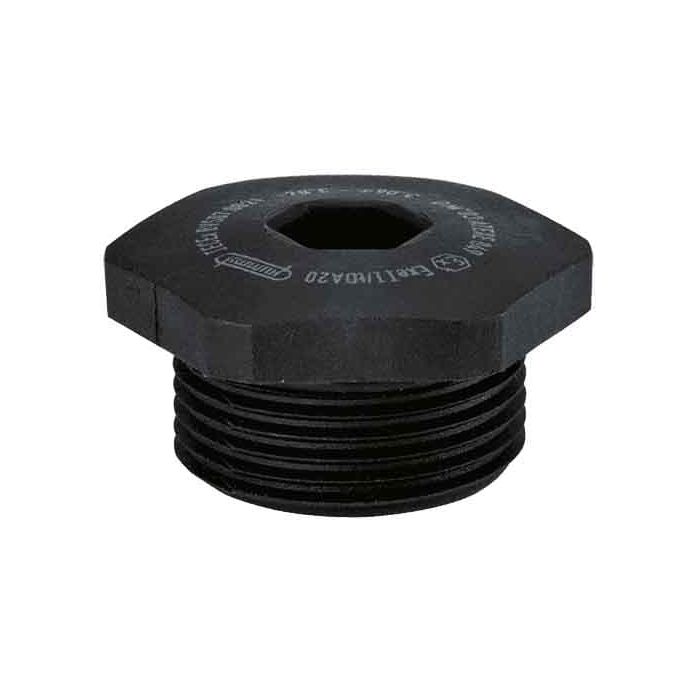

Hummel 1.297.2101.11 Plug made of polyamide with thread for hazardous areas

1.297.2101.11

1.297.2101.11

Hummel

Plug made of polyamide with thread for hazardous areas

Plug made of polyamide with thread for hazardous areas from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +90°C Black
In stock
£16.46
More Information
Attribute Value
Product Brand Name 1297210111
Manufacturer Hummel
Colour Black
Weight (kg) 0.0114
Customs tariff number 39269097
EAN code 4033878418253
ETIM 7 EC000032
Packaging Unit 100
Height (mm) 17.5
Certificates ATEX, INMETRO, IECEx, CE, DNV-GL, EAC
External thread (AG) PG 21
Material seals / O-rings NBR
Protection class IP 68 – 10 bar, IP 69 K
Material Polyamide, fiber reinforced
Thread length (mm) 11.5
RAL 9005
Tightening torque [Nm] 5
Wrench size 1 (SW1) [mm] 36
Wrench size (SW) [mm] 36
Allen Key 8
Ex-protection level II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb
Temperature Range -20°C to +90°C
RoHS RoHS
More Information
Attribute Value
Data Sheet Click here to view
