1.680.2118.01
1.680.2118.01
Hummel

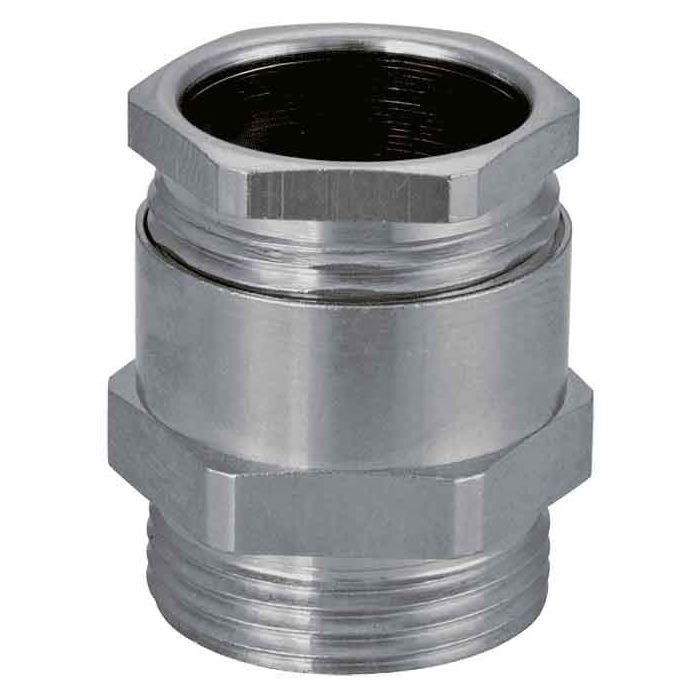

Cable gland made of brass to DIN 46320 with EMC protection
Cable gland made of brass to DIN 46320 with EMC protection Protection class - IP 54, IP 65 in case of additional flat seal at connection thread. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Brand Name | 1680211801 |
Weight (kg) | 0.05806 |
Customs tariff number | 85369010 |
EAN code | 4033878440131 |
ETIM 7 | EC000441 |
Packaging Unit | 25 |
Height (mm) | 27.0000 |
Certificates | CE |
Version | short |
External thread (AG) | PG 21 |
Cable diameter (mm) | 9 – 20 |
Wrench size SW1 / SW2 (mm) | 28/30 |
Protection class | IP 54, IP 65 in case of additional flat seal at connection thread |
Material | Nickel-plated brass |
Seal | NBR |
Thread length (mm) | 10.0000 |
Variant | PG |
Wrench size 1 (SW1) [mm] | 28.0000 |
Wrench size (SW) [mm] | 30.0000 |
E (mm) | 18.0000 |
Norms | RoHS, EMV |
Type | SE |
Temperature Range | -20°C to +80°C |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
