1.897.1000.70
1.897.1000.70
Hummel

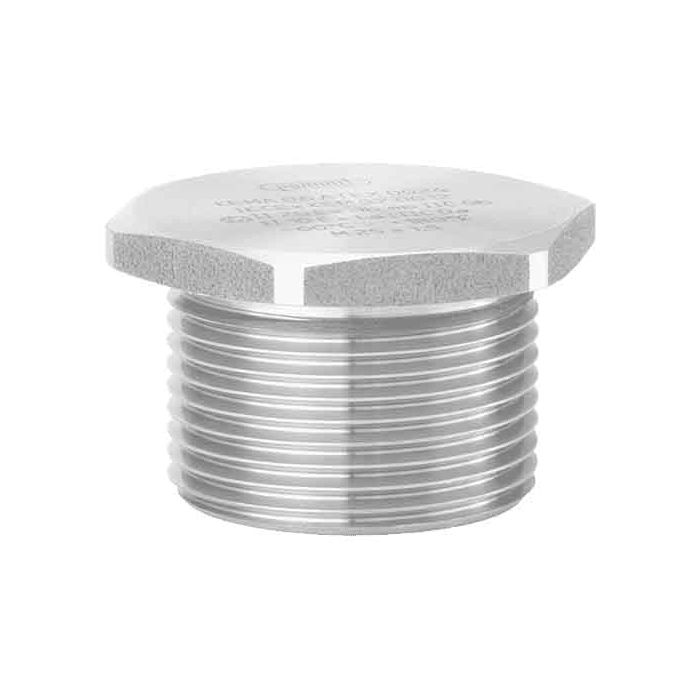

Plug made of stainless steel with thread for hazardous areas
Plug made of stainless steel with thread for hazardous areas from Hummel. NPT. Protection class IP 68 – 10 bar, IP 69 K -
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1897100070 |
| Manufacturer | Hummel |
| Weight (kg) | 0.10802 |
| Customs tariff number | 73181575 |
| EAN code | 4033878445617 |
| ETIM 7 | EC000032 |
| Packaging Unit | 5 |
| Height (mm) | 29.5 |
| Certificates | CE, EAC, INMETRO, DNV-GL, ATEX, IECEx |
| RoHS | RoHS |
| Version | short |
| External thread (AG) | NPT 1" |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4404 |
| Thread length (mm) | 25.0000 |
| Tightening torque [Nm] | 15.0000 |
| Wrench size 1 (SW1) [mm] | 41.0000 |
| Wrench size (SW) [mm] | 41.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex db eb IIC Gb |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
