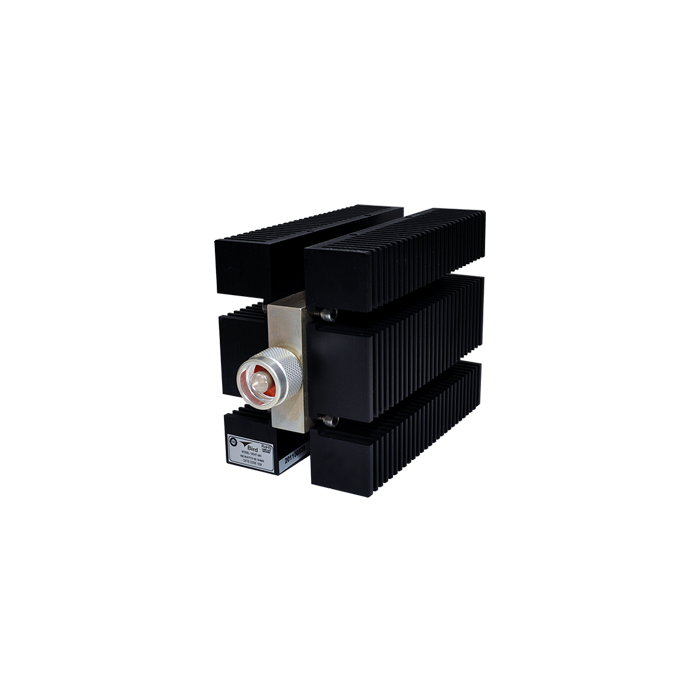

6 GHz, 100 Watt, Convection-Cooled Dry Terminations
100-6T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
100-6T Series Specifications
- Very Low VSWR microwave frequencies
- Ultra-compact dimensions
- Rugged Reliability provides years of trouble free use
- Precision Stainless Steel Connectors
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 6 GHz, DC to 2 GHz @ 1.20:1 Max., 2 GHz to 4 GHz @ 1.30:1 Max., 4 GHz to 6 GHz @ 1.40:1 Max. |
| Operating Position | Heat Sink Oriented Vertically |
| Peak Power | 1000 Watts (5µS PW, /<.01% Duty Cycle) |
| Cooling Type | Dry (Convection-Cooled) |
| Body Material | Aluminum |
| Connectors | N |
| Temperature Range | -65 to +125 °C |
| Dimensions | 5.46" x 3.50" x 3.80" (L x W x H) |
