50-CT Series
50-CT Series
Bird

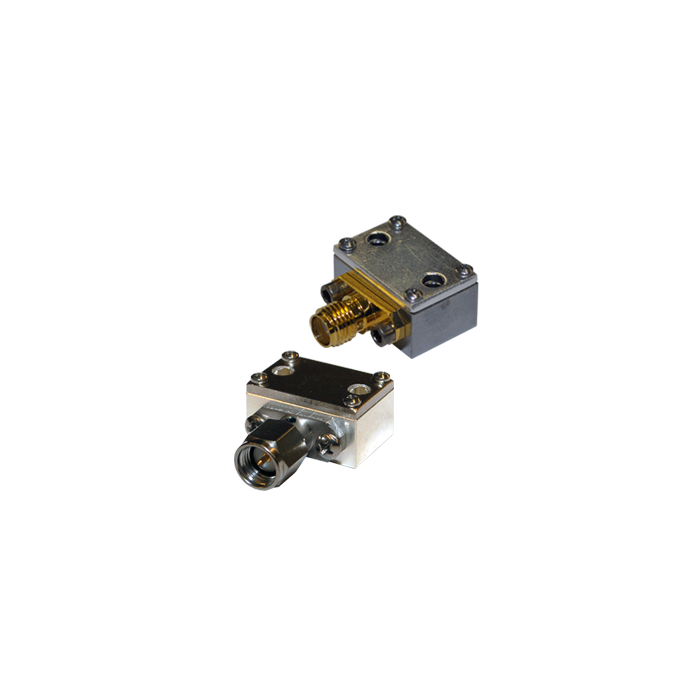

50 Watt, Conduction-Cooled Dry Terminations
50-CT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
50-CT Series Specifications
- Rugged Reliability provides years of trouble free use
- Conducts heat to user-supplied heat sink
- Compact size lightweight
- Easy to Use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Silver or Tri-Alloy Plated |
| VSWR and Frequency Range | DC to 3 GHz @ 1.15:1 max., 3 GHz to 6 GHz @ 1.25:1 max. |
| Operating Position | Any |
| Cooling Type | Dry (Conduction-Cooled) |
| Mounting Centers | 0.52" (13.3 mm) |
| Connectors | SMA |
| Dimensions | 0.86" x 0.75" 0.39" (L x W x H), 21.9 x 19.2 x 10.0 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
