50-T Series
50-T Series
Bird

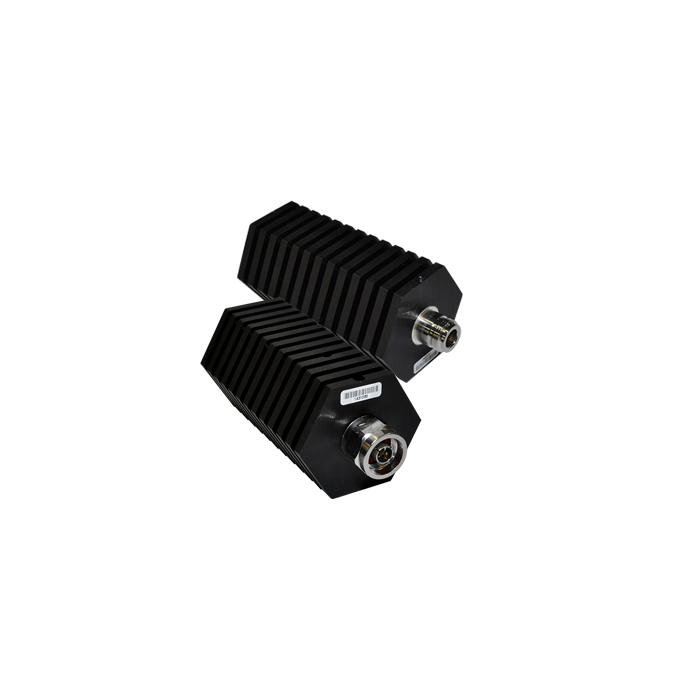

50 Watt, Convection-Cooled Dry Terminations
50-T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
50-T Series Specifications
- Wide variety of connectors
- Compact size easily transportable
- Optionally available with Aluminum Nitride (BeO free) - See Model 50-NT-MN
- Available as a Calibrated Mismatch Load - See Model 50-T-MN-3R00
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max, 1 GHz to 4 GHz @ 1.25:1 max. |
| Operating Position | Any |
| Cooling Type | Dry (Convection-Cooled) |
| Body Material | Aluminum |
| Connectors | SMA, BNC, 7/16 DIN, N, TNC, 4.1/9.5 |
| Temperature Range | -40 to +40 °C |
| Dimensions | (with N-type connector): 4.7" L x 2.3" Dia., (119.4 x 58.50 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
