Bird
250 Watt, Oil-Cooled RF Termination

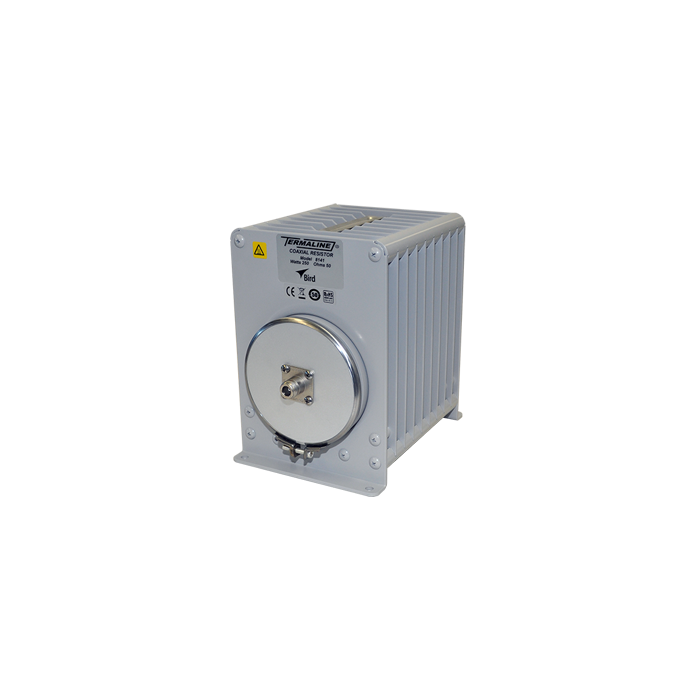

8141, RF Load is a portable, self-contained general purpose 50 ohm coaxial transmission line termination requiring no outside power source or additional equipment. It provides accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 2.5 GHz.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
8141 Specifications
- Rugged portable Bench load for medium power base station RF testing up to 2.5 GHz
- Oil-assisted convection cooling for safe continuous operation up to 250W full rated power
- Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
- Low-profile housing with handle and rubber feet for trouble-free operation in the most demanding environments
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Gray Powder Coat |
| VSWR and Frequency Range | DC to 1 GHz @ 1.1 max., 1 GHz to 1.8 GHz @ 1.2 max., 1.8 to 2.5 GHz @ 1.3 max. |
| Coolant | 0.35 gal. (1.3 liters) Silicone Oil |
| Operating Position | Horizontal Only |
| Cooling Type | Oil-Cooled |
| Connectors | N (F) |
| Temperature Range | -40 to +45 °C |
| Dimensions | 9-9/16" x 8-1/2" x 5-15/16" (L x H x W), 243 x 216 x 151 mm |
