300-T Series
300-T Series
Bird RF

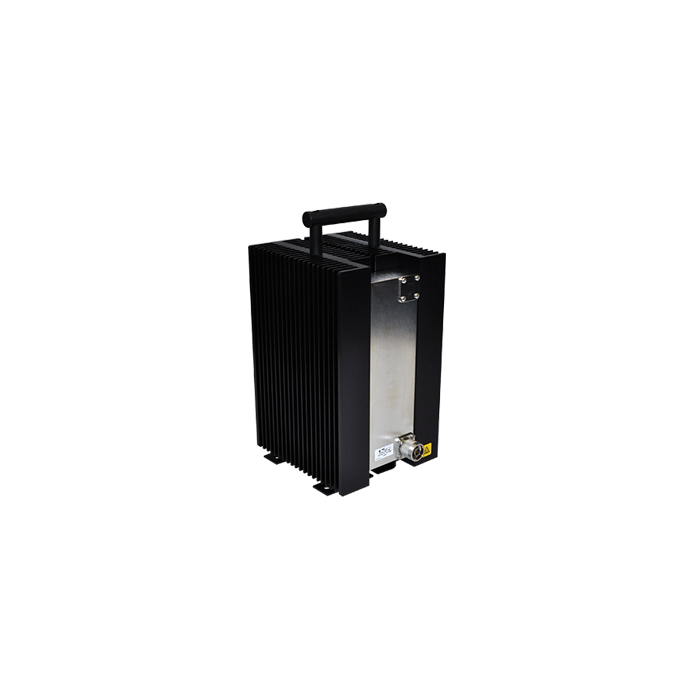

300 Watt, Convection-Cooled Dry Terminations
300-T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
300-T Series Specifications
- Rugged Reliability provides years of trouble free use
- Conducts heat to user-supplied heat sink
- Compact size lightweight
- Easy to Use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max., 1 GHz to 2.4 GHz @ 1.25:1 max. |
| Coolant | Dry (Convection-Cooled) |
| Operating Position | Vertical |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | BNC, 7/16 DIN, N, TNC |
| Dimensions | (with N-type connector): 10.9" x 5.4" x 16.8" (H x W x D), 276.9 x 137.2 x 172.8 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
