250-CT Series
250-CT Series
Bird RF

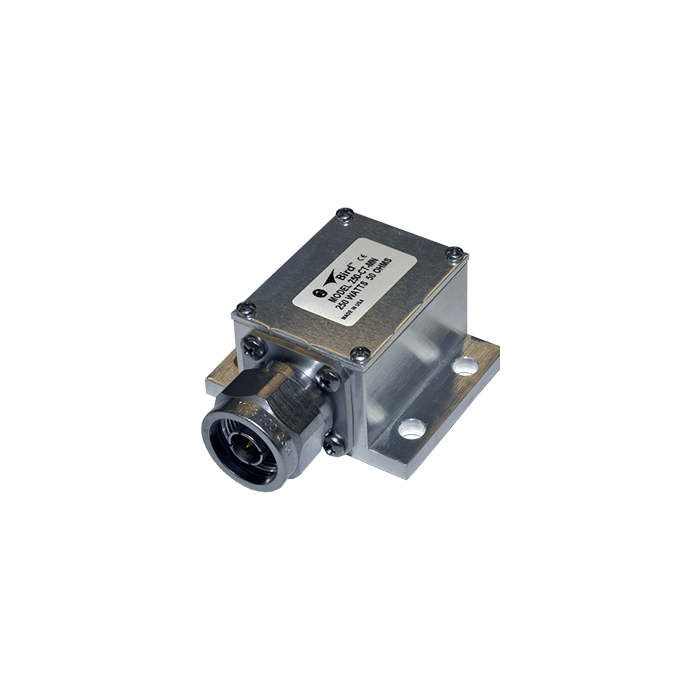

250 Watt, Conduction-Cooled Dry Terminations
250-CT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
250-CT Series Specifications
- Rugged Reliability provides years of trouble free use
- Conducts heat to user-supplied heat sink
- Compact size lightweight
- Easy To Use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Silver or Tri-Alloy Plated |
| VSWR and Frequency Range | SMA: DC to 2 GHz @ 1.15:1 max, 2 GHz to 3 GHz @ 1.25:1 max., All Others: DC to 1 GHz @ 1.15:1 max, 1 GHz to 2.4 GHz @ 1.25:1 max |
| Operating Position | Any |
| Cooling Type | Dry (Conduction-Cooled) |
| Mounting Centers | 0.875" x 1.625", (22.3 x 41.3 mm) |
| Connectors | BNC, N, TNC, SMA |
| Dimensions | 2.36" x 2.00" x 1.062" (L x W x H), 60.0 x 50.8 x 27.0 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
