1000-T Series
1000-T Series
Bird

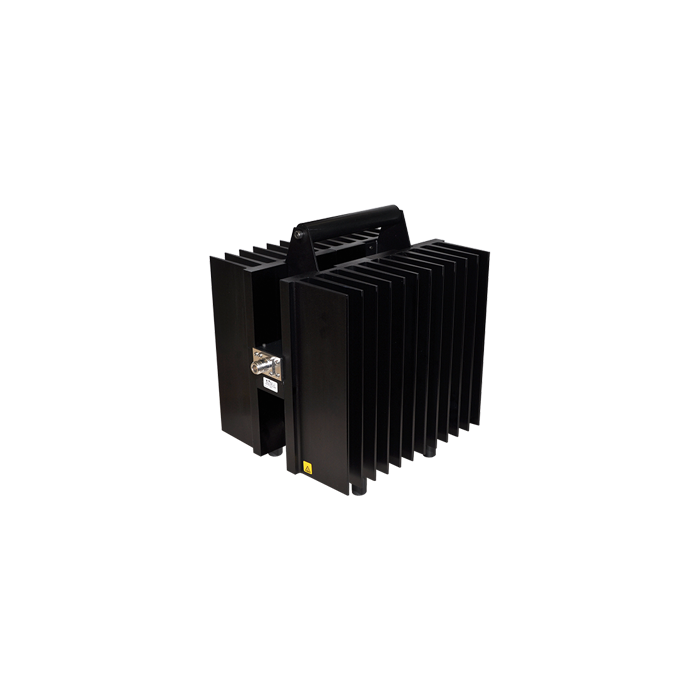

1000 Watt, Convection-Cooled Dry Terminations
1000-T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
1000-T Series Specifications
- QC connector option for dozens of specialty connector types
- Rugged Reliability provides years of trouble free use
- Carrying handle for easy transport
- Rugged Reliability provides years of trouble free use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Impedence Ohm | 50 |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max., 1 GHz to 2.4 GHz @ 1.25:1 max. |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | 7/16 DIN, N |
| Temperature Range | -40 to +40°C |
| Dimensions | 12.0" x 9.57" x 12.75" (L x W x H), 304.8 x 243.08 x 323.85 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
