Bird

150 Watt, Convection-Cooled Dry Terminations

150-ST Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

150-ST Series Specifications

  • Wide variety of connectors
  • Convection-Cooled
  • Rugged Reliability provides years of trouble free use
  • Compact size tapped mounting holes for fixed installations
More Information
Attribute Value
Manufacturer Bird
Impedence Ohm 50.0000
Housing surface finish Black Anodized Aluminum
VSWR and Frequency Range DC to 1 GHz @ 1.10:1 max., 1 GHz to 2.4 GHz @ 1.25:1 max
Operating Position Vertical
Cooling Type Dry (Convection-Cooled)
Connectors BNC, 7/16 DIN, N, TNC, 4.1/9.5
Temperature Range -40 to +40 °C
Dimensions 6.75" x 4.0" x 4.0" (L x W x H), 171.45 x 101.6 x 101.6 mm
More Information
Attribute Value
Data Sheet Click here to view

Related Products

  1. 8770 Series
  2. 1000-T Series
  3. 25-T Series

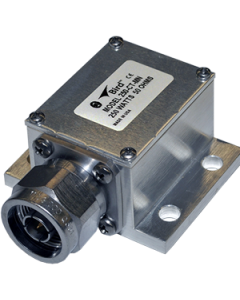

  4. 250-CT Series
