5-18T Series
5-18T Series
Bird

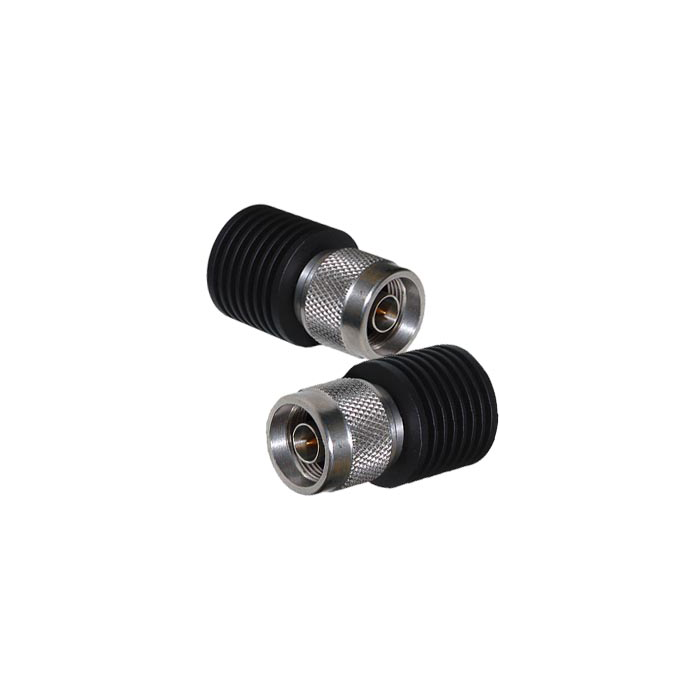

5 Watt, 18 GHz, Convection-Cooled Dry Terminations
5-18T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
5-18T Series Specifications
- Very Low VSWR microwave frequencies
- Ultra-compact dimensions
- Rugged Reliability provides years of trouble free use
- Precision Stainless Steel Connectors
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| VSWR and Frequency Range | DC to 18 GHz, VSWR See Drawings |
| Peak Power | 250 Watts max. (5uSec Pulse, 0.25% Duty Cycle) |
| Cooling Type | Dry (Convection-Cooled) |
| Body Material | Passivated Stainless Steel |
| Contact Material | Beryllium Copper, Gold Plated Over Nickel |
| Connectors | SMA, N |
| Temperature Range | -65 to +125°C |
| Dimensions | See Drawings |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
