Bird

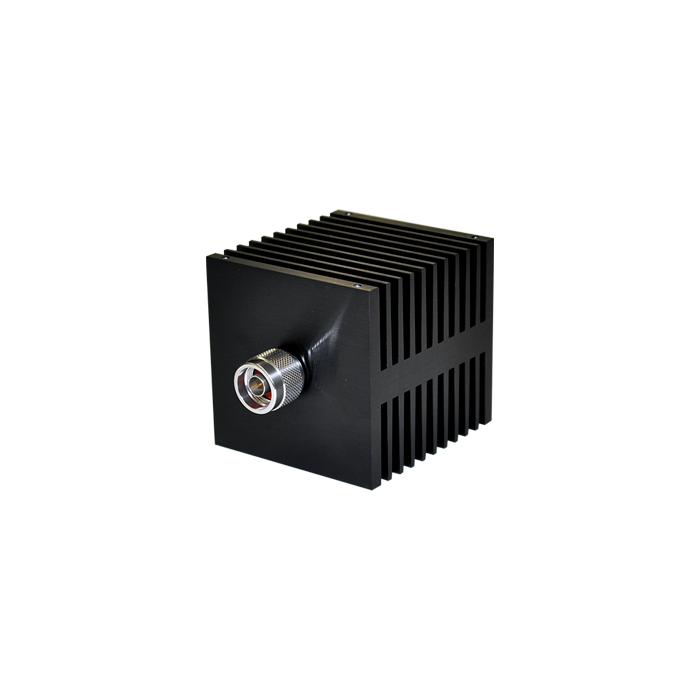

18 GHz, 50 Watt, Convection-Cooled Dry Terminations
50-18T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
50-18T Series Specifications
- Very Low VSWR microwave frequencies
- Ultra-compact dimensions
- Rugged Reliability provides years of trouble free use
- Precision Stainless Steel Connectors
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 18 GHz, DC to 6 GHz @ 1.20:1 Max., 6 GHz to 12.4 GHz @ 1.30:1 Max., 12.4 GHz to 18 GHz @ 1.40:1 Max. |
| Operating Position | Any |
| Peak Power | 500 Watts (5µS Pulse, 0.05% Duty Cycle) |
| Cooling Type | Dry (Convection-Cooled) |
| Body Material | Aluminum |
| Connectors | N |
| Temperature Range | -65 to +125 °C |
| Dimensions | 3.00" SQ. X 4.03" Long |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
