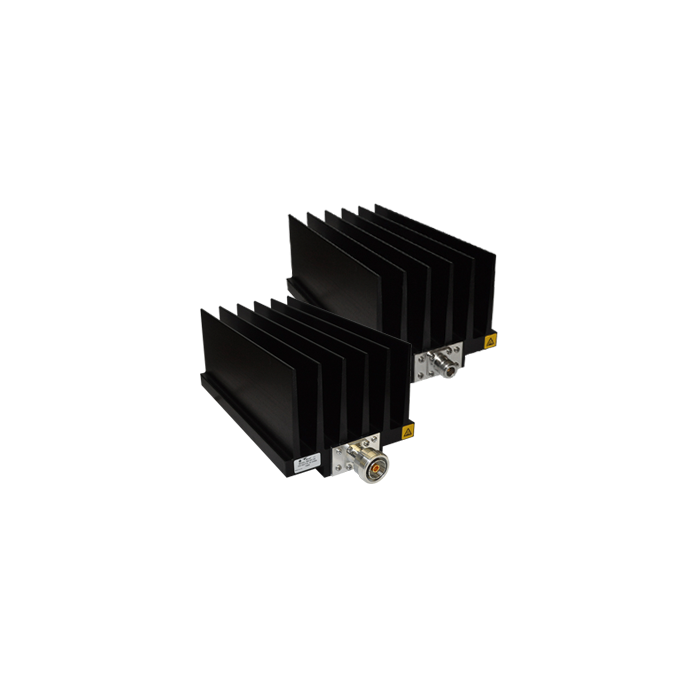

500 Watt, Convection-Cooled Dry Terminations
500-WT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI. No fluids or maintenance required.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
500-WT Series Specifications
- Wide variety of connectors
- Ultra-Compact size tapped mounting holes for fixed installations
- QC connector option for dozens of speciality connector types
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC - 1 GHz @ 1.10:1 max., 1 GHz to 2.4 GHz @ 1.25:1 max. |
| Operating Position | Any, except mounting surface up |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | 7/16 DIN, N |
| Dimensions | (with female N-type connector; excludes removable feet): 10.59" x 5.4" x 4.3" (L x W x H), 266.7 x 137.2 x 109.3 mm |
