8072A Series
8072A Series
Bird

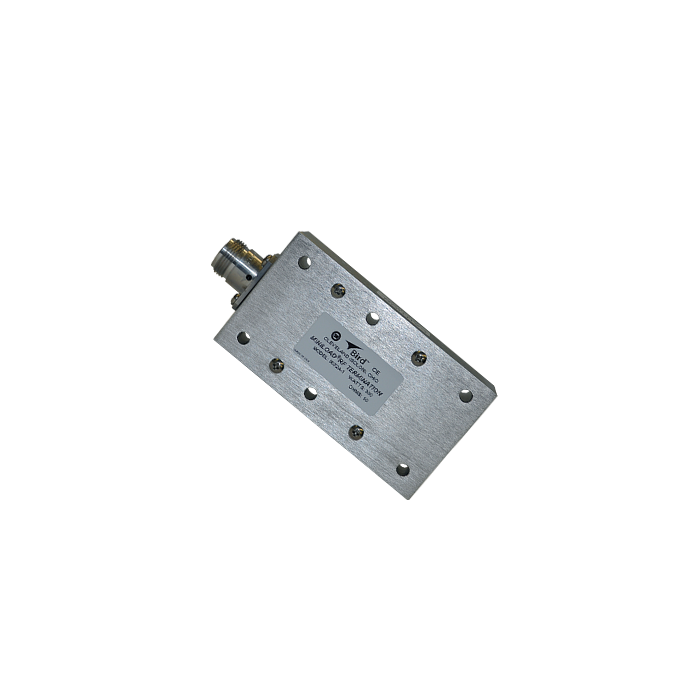

300 Watt, Conduction-Cooled Dry Terminations
8072A Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
8072A Series Specifications
- Rugged Reliability provides years of trouble free use
- Conducts heat to user-supplied heat sink
- Compact size lightweight
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Silver or Tri-Alloy Plated |
| VSWR and Frequency Range | 8072A-1, DC to 1 GHz @ 1.10 (max), 1GHz to 2.5 GHz @ 1.20 (max), , 8072A-2, 2.7 to 2.9 GHz @ 1.15 (max) |
| Operating Position | Any |
| Connectors | Type-N (Female) |
| Temperature Range | 8072A-1: -40° to +55°C (-40° to 131°F), 8072A-2: -40° to +70°C (-40° to 158°F) |
| Dimensions | 4-25/64" x 2" x 1-1/32" (110 x 51 x 26mm); nominal, Includes connectors |
