Bird RF

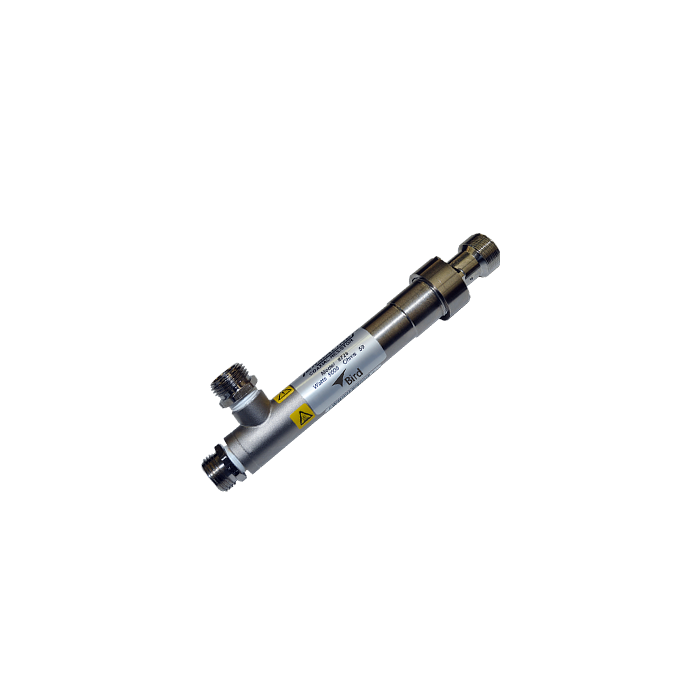

5 kW, Direct Water-Cooled RF Termination
8726, RF Load is designed as a compact, low VSWR and non-radiating termination for high-power transmitter/transmission line systems. It generates almost no ambient heat, making installation space minimal and convenient, in any position. The RF power is converted to heat in the hollow resistive film load resistor and directly absorbed by the water flowing through it.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
8726 Specifications
- Broadband water-cooled load for long-term RF dissipation when heat must be efficiently transferred away from the area
- Small size may be carried easily used in any position and installed anywhere there is a source of potable water
- LC-Female (QC) connector allows termination of full 5000 W over d.c. to 2 GHz. It may be interchanged with other QC connectors capable of high power at the frequency being used such as SC 7/8 and 1-5/8 EIA Flange
- Requires flow rate of 1 gallon (3.8 liters) per minute
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Bright Nickel Plated |
| VSWR and Frequency Range | DC to 500 MHz @ 1.1 max., 500 MHz to 2000 MHz @ 1.25 max. |
| Coolant | Potable Water |
| Operating Position | Any |
| Water Temperature Range | +5 to +80 °C |
| Water Flow Rate | 1 gal./minute at 5 °C to 6 gpm at 80 °C (3.8 liters/minute at 5 °C to 15.21 lpm at 80 °C) |
| Cooling Type | Direct Water-Cooled |
| Waterlines | 3/4" hose |
| Input Flange Diameter | 3 1/2" |
| Connectors | LC (F) |
| Dimensions | 10-7/16" L x 1-11/16" Dia. |
