300-WT Series
300-WT Series
Bird RF

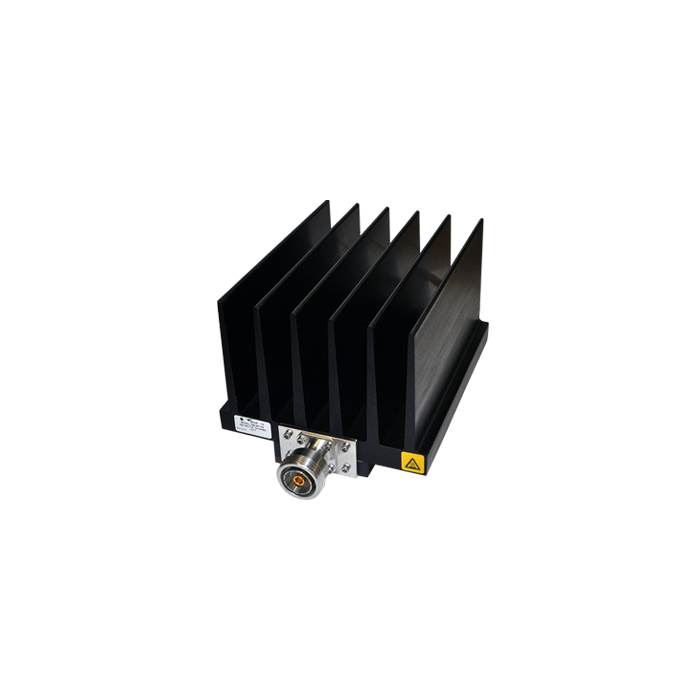

300 Watt, Convection-Cooled Dry Terminations
300-WT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI. No fluids or maintenance required.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
300-WT Series Specifications
- Wide variety of connectors
- Rugged Reliability provides years of trouble free use
- Ultra-Compact size tapped mounting holes for fixed installations
- QC connector option for dozens of speciality connector types
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max., 1 GHz to 2.4 GHz @ 1.25:1 max. |
| Coolant | Dry (Convection-Cooled) |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | BNC, 7/16 DIN, N, TNC |
| Temperature Range | -40 to +40 °C |
| Dimensions | 8.2" x 5.4" x 4.8" (L x W x H), 208.28 x 137.16 x 121.92 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
