Bird

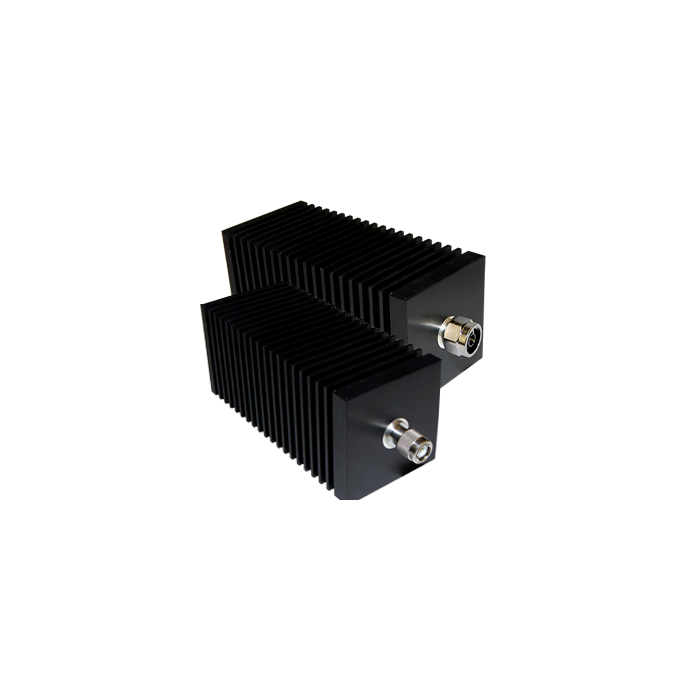

100 Watt, Convection-Cooled Dry Terminations
100-ST Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
100-ST Series Specifications
- Wide variety of connectors
- Rugged Reliability provides years of trouble free use
- Compact size tapped mounting holes for fixed installations
- Optionally available with Aluminum Nitride Ceramic
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Fins |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max., 1 GHz to 4 GHz @ 1.25:1 max. |
| Operating Position | Any |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | N, TNC, BNC, 7/16 DIN, MD |
| Temperature Range | -40 to +40°C |
| Dimensions | (with N-type connector): 6.95" x 2.75" x 2.75" (L x W x H) , 174 x 69.9 x 69.9 mm |
