100-CT Series
100-CT Series
Bird

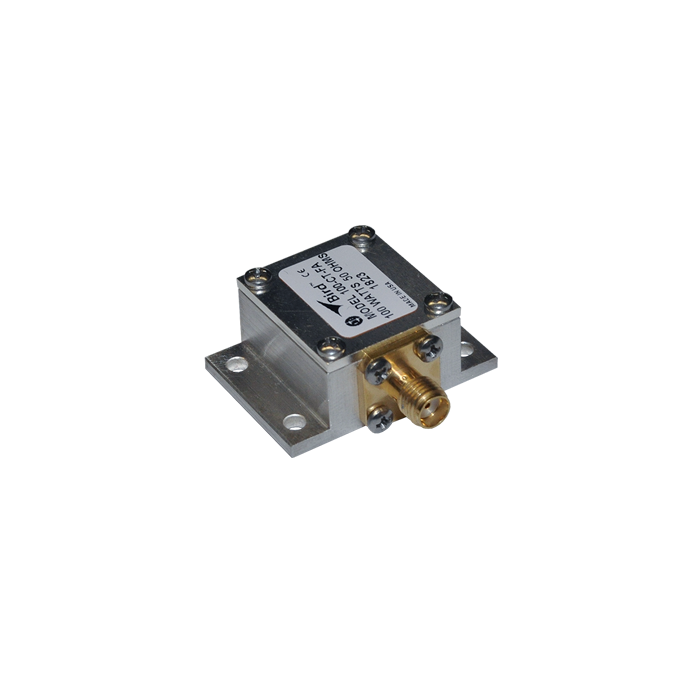

100 Watt, Conduction-Cooled Dry Terminations
100-CT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
100-CT Series Specifications
- Rugged Reliability provides years of trouble free use
- Conducts heat to user-supplied heat sink
- Compact size lightweight
- Easy to Use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Silver or Tri-Alloy Plated |
| VSWR and Frequency Range | DC to 2 GHz @ 1.15:1 max., 2 GHz to 3 GHz @ 1.25:1 max |
| Operating Position | Any |
| Cooling Type | Dry (Conduction-Cooled) |
| Mounting Centers | 0.625" x 1.125", (15.9 x 28.6 mm) |
| Connectors | SMA |
| Dimensions | 1.34" x 1.375" x 0.56 (L x W x H), 34.1 x 35 x 14.3 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
