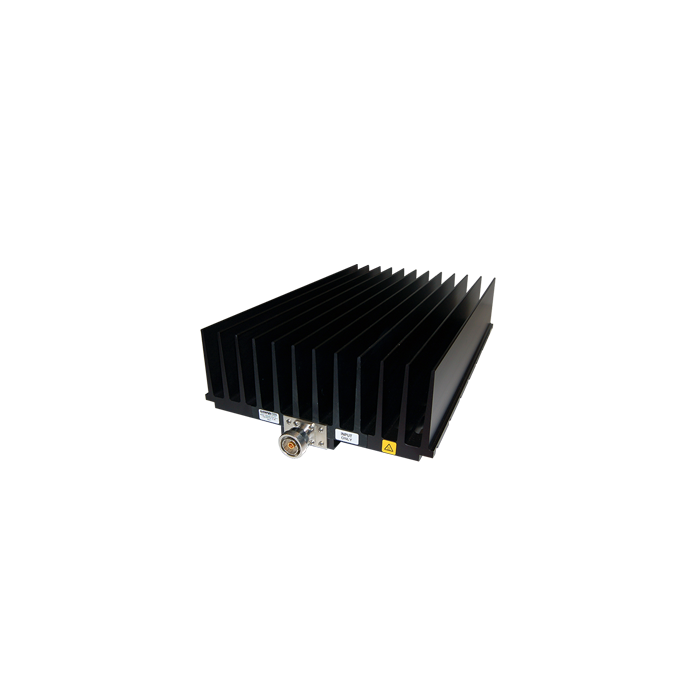

1000 Watt, Convection-Cooled Dry RF Terminations
1000-WT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
1000-WT Series Specifications
- QC connector option for dozens of specialty connector types
- Rugged Reliability provides years of trouble free use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max., 2.4 GHz @ 1.25:1 max |
| Operating Position | Any, except mounting surface up |
| Cooling Type | Dry (Convection-Cooled) |
| Mounting Centers | Typical 1/4-20 thread x 0.5" D, (4) Mounting holes - 1.885" x 14.65" |
| Connectors | 7/16 DIN, N |
| Dimensions | 17.98" x 8.95" x 4.3" (L x W x H), 456.69 x 227.33 x 109.22 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
