10360080012
10360080012
Harting

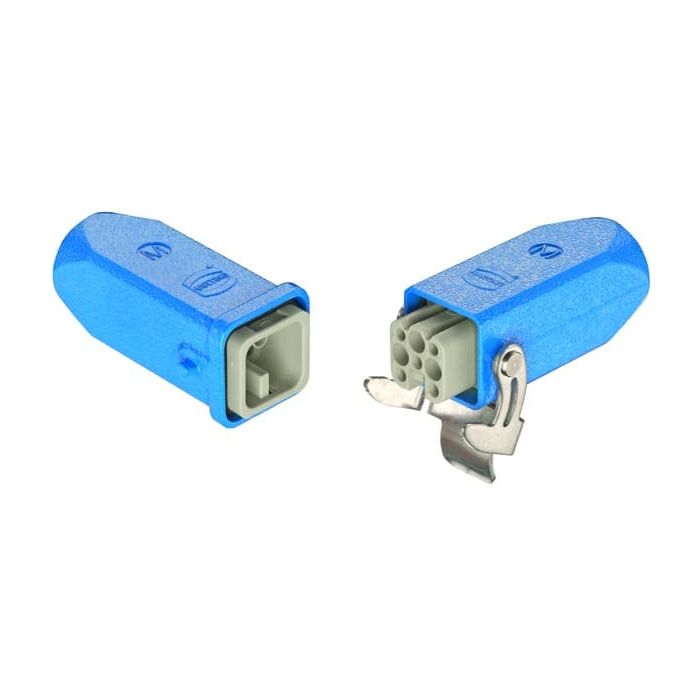

Han Ex 8D Kit HCC-M20/HTE-M20
Connector sets, Crimp termination, Rated current:10 A, Contacts: 8, Size: 3 A, Single locking lever, Top entry, 1x M20, 1x M20, Material: Zinc die-cast, Powder-coated, Degree of protection: IP67, with seal screw 09 20 000 9918
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 416 Han Ex |
| Product Family | Han Ex Sets |
| Product Brand Name | 10 36 008 0012 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han D® |
| Manufacturer Product Family | Han® Ex |
| Material housing | Zink print cast |
| Number of poles | 8.0000 |
| Degree of protection - IP (mounted) | IP67 |
| PE connection present ? | No |
| Rated voltage (V) | 90.0000 |
| Material of insulation | Polycarbonate (PC) |
| Conductor connection method | crimp connection |
| Interlock type | Longitudinal strap |
| Size of connection thread | M20 |
| Cable entry direction | top |
| Number of cable inlets | 1.0000 |
| Housing surface finish | powder-coated |
| Locking present ? | Yes |
| EMC design present ? | No |
| Fire resistance class | V0 |
| Seal present ? | Yes |
| Standards | EN 60664-1 |
| Current Rating (A) | 10.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
