15120806601000
15120806601000
Harting

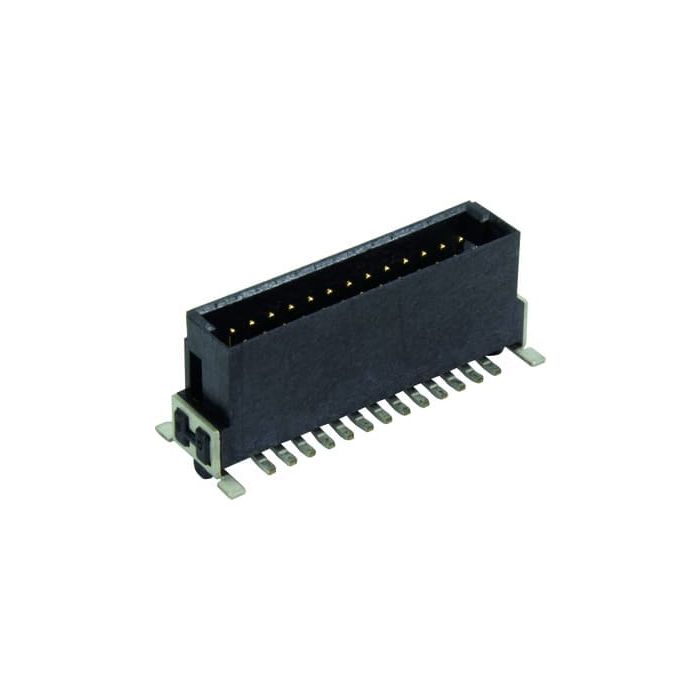

har-flex str m 3.25mm 80p PL2 280pcs
Connectors, Male connector, Reflow soldering termination (SMT), Contacts: 80, Straight, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 2, Liquid crystal polymer (LCP)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-flex straight male |
| Product Family | har-flex |
| Product Brand Name | 15 12 080 6601 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CN |
| Type of packaging | Castor |
| Number of poles | 80.0000 |
| Material contact surface | Nickel/gold |
| Material of insulation | Liquid crystal polymer |
| Direction mating face | Standard |
| Coating plug contact area | Gold (au) |
| Number of rows | 2.0000 |
| Type of PCB contacting | Reflow soldering termination (SMT) |
| Grid dimensions 1 (mm) | 1.27 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
