Harting

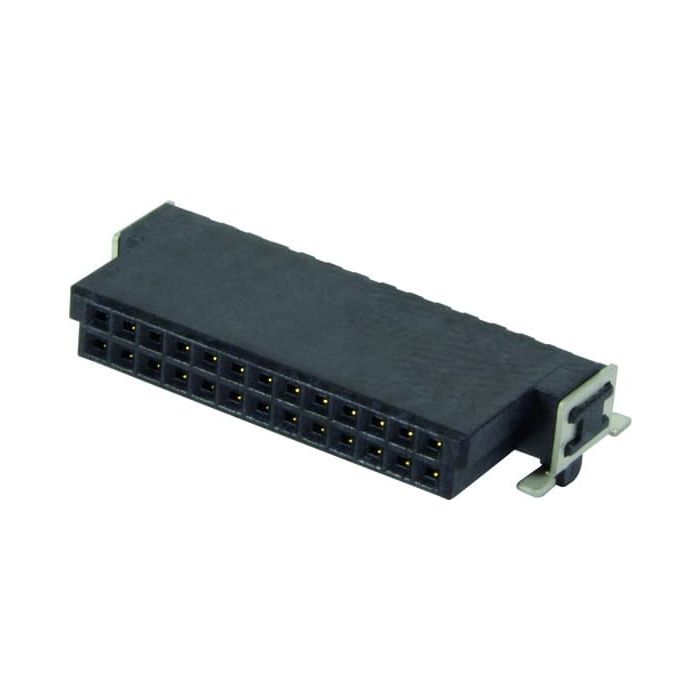

har-flex ang f 80p PL1

Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 80, Angled, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 1, Liquid crystal polymer (LCP)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment har-flex samples angled female
Product Family har-flex
Product Brand Name 15 25 080 2601 333
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1
Quantity Interval 1
Country of origin CN
Type of packaging Sample
Number of poles 80
Material contact surface Nickel/gold
Material of insulation Liquid crystal polymer
Direction mating face turned
Coating plug contact area Gold (au)
Number of rows 2
Type of PCB contacting Reflow soldering termination (SMT)
Grid dimensions 1 (mm) 1.27
Material contact Other copper alloys
Fire resistance class V0
Temperature Range -55 to 125 Deg. C
More Information
Attribute Value
Data Sheet Click here to view
