15290162502000
15290162502000
Harting

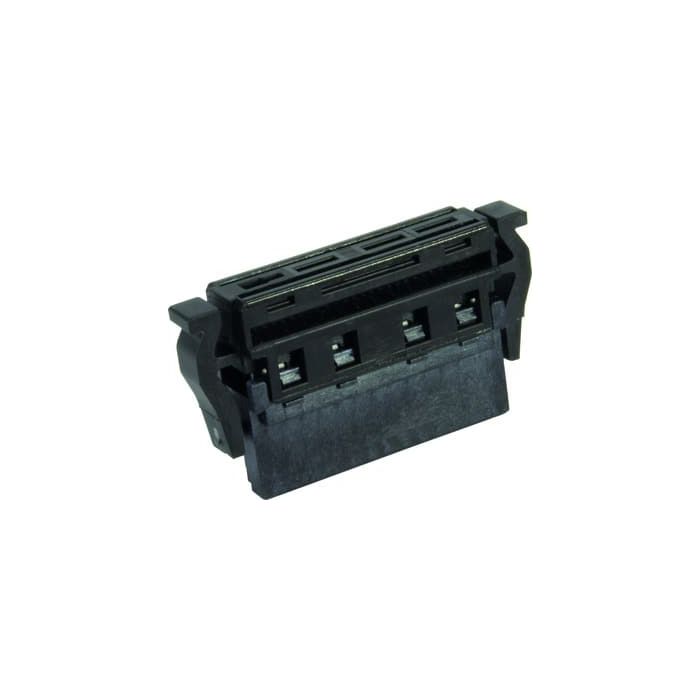

har-flex IDC fem w/st-rel 16pos PL1
Connectors, Female connector, IDC insulation displacement termination, Contacts: 16, Straight, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 1, Liquid crystal polymer (LCP)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-flex IDC |
| Product Family | har-flex |
| Product Brand Name | 15 29 016 2502 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 120.0000 |
| Quantity Interval | 120.0000 |
| Country of origin | CN |
| Number of poles | 16.0000 |
| Material contact surface | Nickel/gold |
| Material of insulation | Liquid crystal polymer |
| Direction mating face | Standard |
| Coating plug contact area | Gold (au) |
| Number of rows | 2.0000 |
| Type of PCB contacting | IDC insulation displacement termination |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
