17011102204
17011102204
Harting

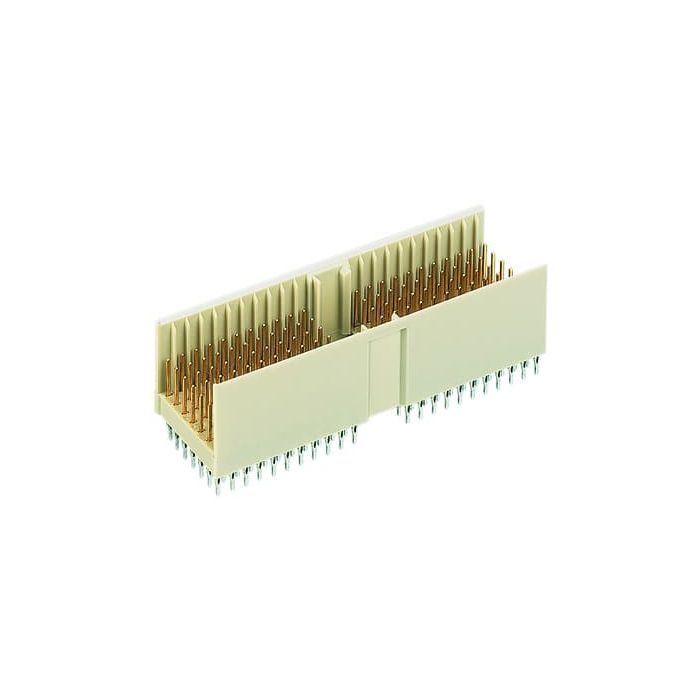

har-bus HM Mel. Typ A, AFS 2, Tube
Connectors, Male connector, Press-in termination, Rated current:1 A, Contacts: 110, Straight, Copper alloy, Au over Pd/Ni over Ni, Mating side, Nickel plated, Termination side, Performance level: 2, Thermoplastic resin, glass-fibre filled, Beige
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-bus HM male |
| Product Family | har-bus HM |
| Product Brand Name | 17 01 110 2204 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Type of packaging | plastic box |
| Number of poles | 110.0000 |
| Material contact surface | Nickel/gold |
| Material of insulation | Thermoplast |
| Direction mating face | Standard |
| Coating plug contact area | Gold (au) |
| Number of rows | 7.0000 |
| Type of PCB contacting | Press-in |
| Grid dimensions 1 (mm) | 2.0000 |
| Grid dimensions 2 (mm) | 2.0000 |
| Suitable for printed circuit board thickness (mm) | 1.4 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1.0000 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
