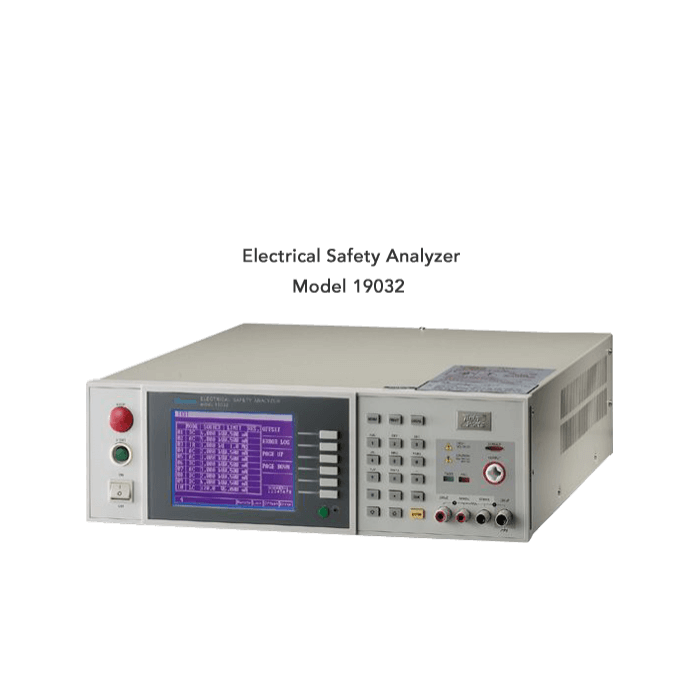

19032

Electrical Safety Analyser Combining Five Instruments In One

The Chroma 19032 Electrical Safety Analyser combines Hipot, Insulation Resistance( IR), Ground Bond (GB), Leakage Current (LC)/AC LC/DC LC and Dynamic Function Test. Savings can be up to 50% of production line space, by not purchasing several safety test instruments.

The Chroma 19032 is able to increase efficiency of electrical safety testing during manufacturing and reduce the labour cost on these tests. The 19032 series can be applied to versatile tests of electrical products, which include quality assurance sampling inspection test, manufacturing test and development validation of:

• Power cord
• House appliances
• Information technology product
• Medical equipment
• Lab/testing equipment
• EMI Filter
• Electric Vehicles
• Solar, PV inverter

Key Features:

• ACWV/DCWV/IR/GB/LC five instruments in one
• Function test up to 20A
• Programmable voltage output and limit value
• OSC open/short check
• Flashover detection
• Human protection circuit
• Multi-scan device support dynamic leakage current test
• Standard RS232 interface
• Optional GPIB interface
• Large LCD panel
• Front panel lockout function
• Support PC software
• CE certification
