Chroma ATE
Hipot Tester - AC/DC/IR

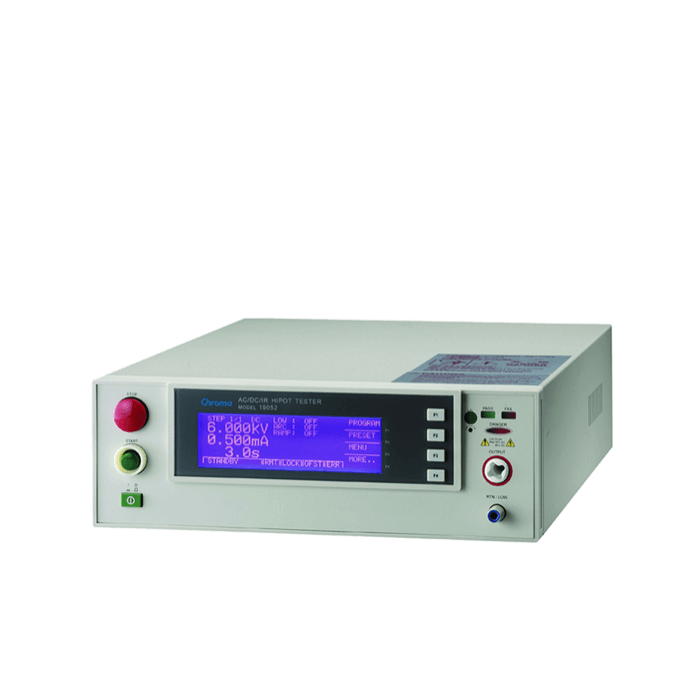

Chroma AC/DC/IR HIPOT TESTER MODEL 19052
Complete Dielctric Testing Solution
The Chroma 19050 Series electrical safety testers are advanced digital hipot testers with load and line regulations that help ensure measurement integrity. The Multi-step capability allows users to perform multiple tests in sequence, such as AC hipot followed by IR.
The Chroma 19052 includes AC/DC hipot testing and IR (Insulation Resistance) measurement.
Key Features
- ACWV/DCWV/IR 3 in 1 hipot tester
- Programmable output voltage to 5kV AC and 6kV DC
- 1kV insulation resistance test
- Insulation resistance measurement from 1MΩ to 50GΩ
- Ground continuity check (GC)
- Standard RS-232 interface
- Open short check(OSC) function
- GFI shutdown of the instrument when current imbalance > 0.5mA
- Flashover (ARC) detection
- Quick discharge of DUT in IR and DC test
- Pause mode
- UL and TUV approved (*see datasheet)
- CE mark
- Programmable ramp/fall and test time
- Programmable high/low limit
- Save/Recall program test function
- Remote control and interface support
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Mode | ACWV/DCWV/IR |
| Insulation Resistance |
Test Output Voltage: DC: 0.05~1kV |
| Withstanding Voltage Test |
Test Output Voltage: AC: 0.05~5kV, DC: 0.05~6kV |
| Memory Storage: Save/Recall | 10 tests setups with 60 steps pre setup |
| Operating Environment | Temperature: 0˚C ~ 45˚C; Humidity: 15%~95% RH @ ≦40˚C |
| Power Consumption | 300W |
| Power Requirements | 100V/120V/220V/240V (AC ±10%), 50/60Hz |
| Dimensions (H x W x D) | 270x105x350 mm/10.63x4.13x13.78 inch |
| Weight | 11 kg / 24.23 lbs |
