19300100736
19300100736
Harting

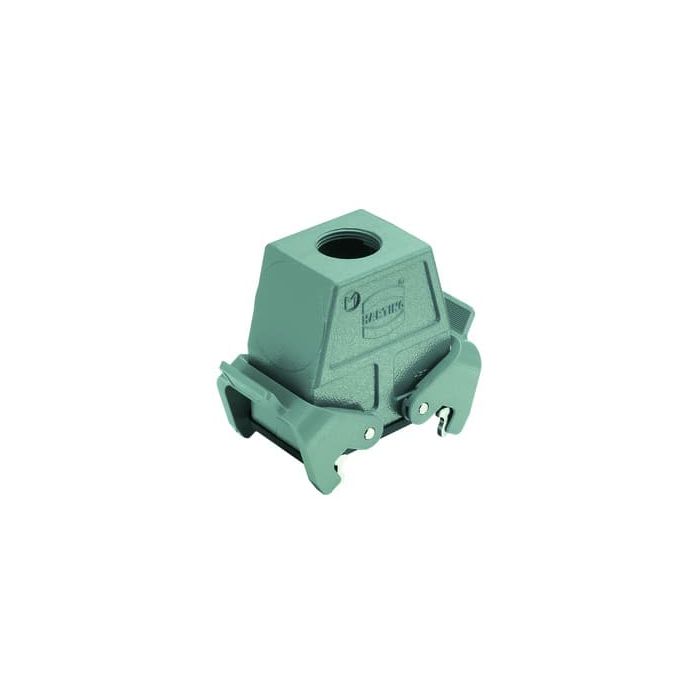

Han 10B-kg-QB-M25
Cable to cable housing, Size: 10 B, High construction, Double locking lever, Polycarbonate (PC), Stainless steel, Top entry, 1x M25, Material (hood/housing): Aluminium die-cast, Powder-coated, RAL 7037 (dust grey), Material (seal): NBR, Degree of protection: IP65
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | 411 Han® B Hoods/Housings |
| Product Family | Han B Housings |
| Product Brand Name | 19 30 010 0736 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Grey |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han® B |
| Size | 10 B |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Coupling housing |
| Housing colour | Grey |
| Interlock type | Transverse strap |
| Shackle position | Subsection |
| Size of connection thread | M25 |
| Cable entry direction | vertical |
| Number of cable inlets | 1 |
| Cable gland mounting method | metric |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
