Harting

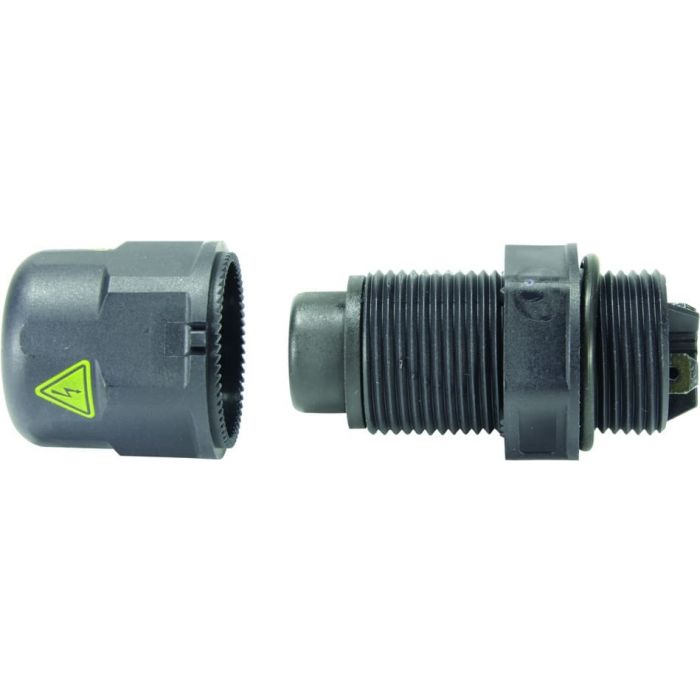

HARAX M20/panel feed through/ 4-poles PE
Panel feed through, With solder termination, for front mounting
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | HARAX Terminations Components |
| Product Family | Circular Connectors |
| Product Brand Name | 21 01 141 3023 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 100.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | HARAX® |
| Material housing | Polyamide (PA) |
| Material contact surface | Gold |
| Degree of protection - IP (mounted) | IP67 |
| Maximum operating ambient temperature (deg C) | 85.0000 |
| PE connection present ? | Yes |
| Screen connection present ? | No |
| Conductor cross section mm2 | 1.5 |
| Current Rating (A) | 16.0000 |
| Body size | M20 |
| Housing type | Panel |
| Housing material | Polyamide (PA) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
