Harting

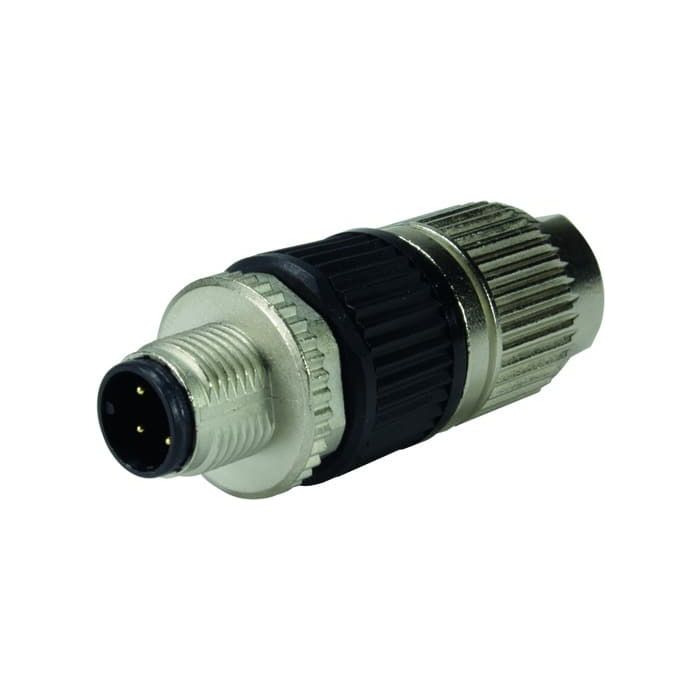

Circular Connector w. Harax M12 L 3P M
Cable connector, Straight, Deviating contact configuration, Male, A-coding, HARAX® connection technology, Polyamide (PA), Contacts: 3, Brass, Gold plated, Conductor cross-section: 0.34...0.75 mm2, Rated current:4 A, Polyamide (PA), Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67, mated condition
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | HARAX Sensor |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 212 1306 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Material housing | Plastic |
| Material contact surface | Gold |
| Cable diameter (mm) | 6…8 |
| Insertion cycles minimum | 100 |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Maximum operating ambient temperature (deg C) | 85 |
| Rated voltage (V) | 50 |
| Maximum connectable conductor cross section (mm2) | 0.75 |
| Minimum connectable conductor cross section (mm2) | 0.34 |
| Conductor connection method | Insulation displacement termination |
| Pollution degree | 3 |
| Design of housing | straight |
| Interlock type | Threaded joint |
| Screened ? | No |
| Overvoltage category | III |
| Standards | IEC 61076-2-101 |
| Body size | M12 |
| Housing type | Cable |
| Housing material | Plastic |
