21033821401
21033821401
Harting

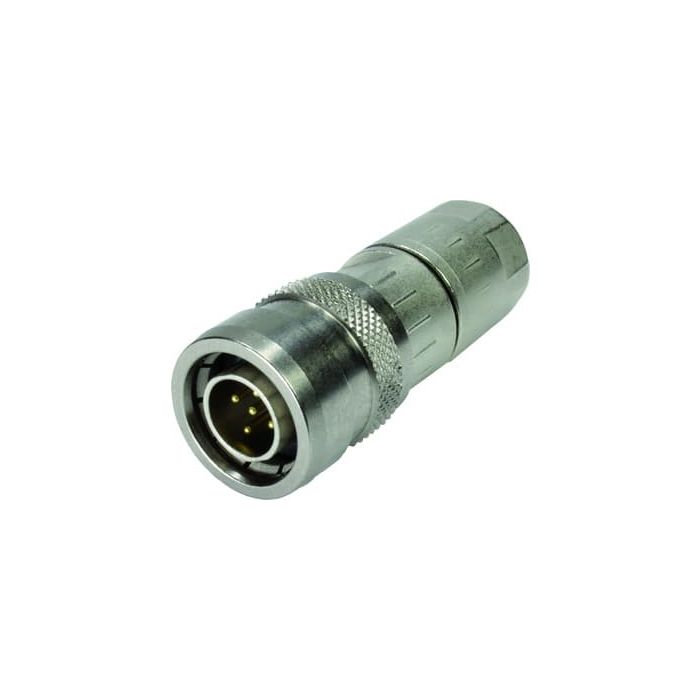

M12-PP-CC-IDC-4P-DCOD-M-STR-SHLD
Cable connector, Straight, Male, D-coding, HARAX® connection technology, Polyamide (PA), Contacts: 4, Copper alloy, Gold plated, Conductor cross-section: 0.34 mm2, Rated current:4 A, Zinc die-cast, PushPull, Degree of protection: IP65 / IP67, mated condition
In stock
| Attribute | Value |
|---|---|
| Product Segment | M12 Slim Design |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 382 1401 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | RO |
| Manufacturer's Brand | Circular connectors |
| Material housing | Zink |
| Material contact surface | Gold |
| Cable diameter (mm) | 5.7…8.8 |
| Insertion cycles minimum | 500 |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Maximum operating ambient temperature (deg C) | 85 |
| Rated voltage (V) | 50 |
| Maximum connectable conductor cross section (mm2) | 0.34 |
| Conductor connection method | Insulation displacement termination |
| Pollution degree | 3 |
| Design of housing | straight |
| Interlock type | Push pull |
| Screened ? | Yes |
| Overvoltage category | III |
| Standards | IEC 61076-2-101 |
| Body size | M12 |
| Housing type | Cable |
| Housing material | Zink |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
