Harting

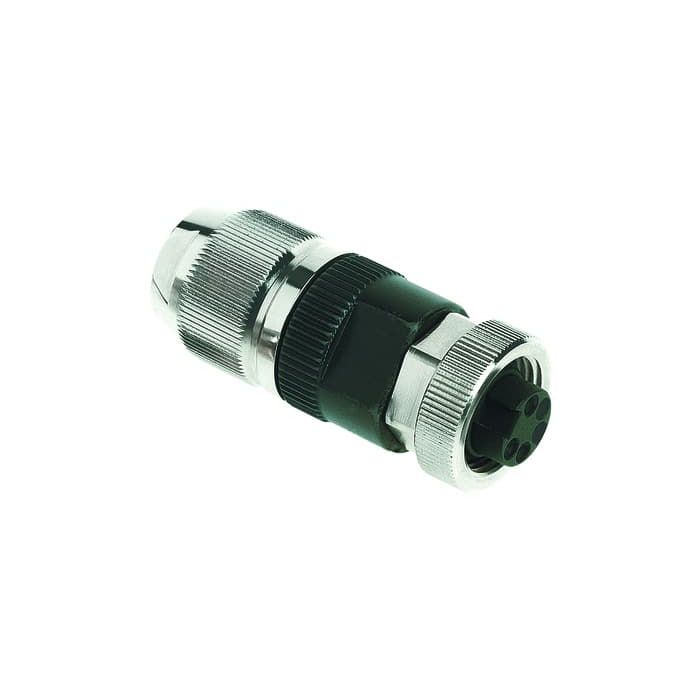

Circular Connector w. Harax 7/8" L 5 F
Cable connector, Straight, Female, HARAX® connection technology, Polyamide (PA), Thermoplastic polyurethane (TPU), Contacts: 5, Copper alloy, Gold plated, Conductor cross-section: 0.75...1.5 mm2, Rated current:10 A, Polyamide (PA), Zinc die-cast, Thermoplastic polyurethane (TPU), Screw locking, Degree of protection: IP65 / IP67, mated condition
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | HARAX Sensor |
| Product Family | Circular Connectors |
| Product Brand Name | 21 04 116 2505 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Material housing | Plastic |
| Material contact surface | Gold |
| Cable diameter (mm) | 6.8…12.5 |
| Insertion cycles minimum | 100.0000 |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Maximum operating ambient temperature (deg C) | 85.0000 |
| Maximum connectable conductor cross section (mm2) | 1.5 |
| Minimum connectable conductor cross section (mm2) | 0.75 |
| Conductor connection method | Insulation displacement termination |
| Pollution degree | 3.0000 |
| Design of housing | straight |
| Interlock type | Threaded joint |
| Screened ? | No |
| Overvoltage category | III |
| Housing type | Cable |
| Housing material | Plastic |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
