Light Duty Multi-Axis Positioning System for Wireless Device Testing

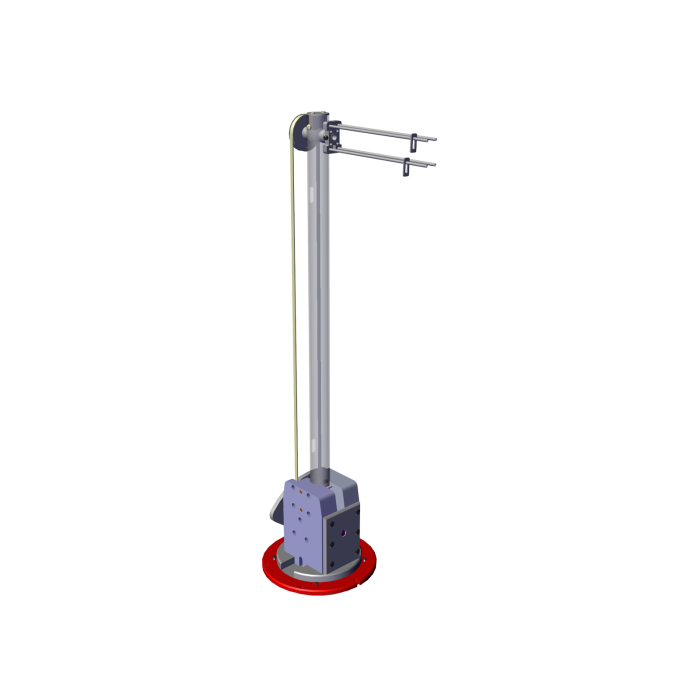

ETS‑Lindgren’s Model 2112 Light Duty Multi-Axis Positioning System (MAPS) is designed to perform measurements of spherical antenna patterns plus total and effective isotropic radiated power of wireless hand-held devices.

The MAPS mast supports the EUT and provides continuous 360° rotation on the horizontal axis while keeping the EUT on the centre of both rotation axes. The system features non-metallic construction to minimise RF obstruction, with the motor unit contained in an RF shielded enclosure placed below the absorber and fibre optic signal lines to eliminate RF noise coupling.

Key Features:

• Maximum Load Capacity: 0.45 kg (1.0 lb)
• 360° Independent Rotation on Theta and Phi Axes
• Non-metallic Construction
• Fibre Optic Control Lines
