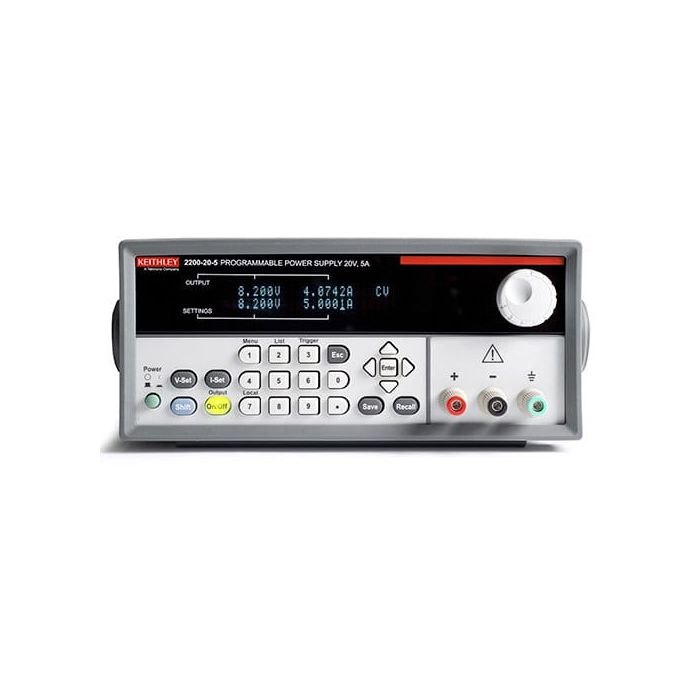

2200-20-5

Keithley Instruments

Programmable DC Power Supply, 20V, 5A

Skip to the beginning of the images gallery

The Series 2200 Single-Channel Programmable DC Power Supplies provide a wide range of voltage outputs to address the testing and characterisation of components, circuits, modules, and complete devices, whether you are in a research laboratory, in design and development, or in production test.

The Series 2200 consists of five models with output voltages from 20V to 72V that can deliver 86W, 96W, 100W, and 150W of power. In addition, these power supplies can act as constant current sources as well as constant voltage sources.

The Series 2200 power supplies offer an excellent combination of performance, versatility, and ease of use that allow you to obtain quality test data as quickly as possible. They perform as effectively in automated test systems as they do in manual instrument configurations.

Contact our team for stock availability and product options.

Price £1,080.00

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more

[email protected]

+44 330 313 3220

Specifications

More Information
Attribute	Value
Key Features	Five models ranging in power from 86W to 150W with voltage outputs from 20V to 72V address a wide range of power requirements 0.03% basic voltage output accuracy and 0.05% basic current accuracy provide quality test data High output and measurement resolution, 1mV and 0.1mA, for testing low power circuits and devices Remote sensing to ensure the programmed voltage is applied to the load Dual-line display shows both the programmed values and actual outputs for a continuous indication of the status of the power delivered to the load Repeatable test sequences of up to 80 output steps are easy to create with the built-in List mode GPIB and USB interfaces are standard for convenient automated control
Manufacturer Product Family	Keithley 2200 DC Power Supply
Maximum Voltage	20V
Maximum Current	5A
Power	100 W
Outputs	Single Output
