2380-500-30

2380-500-30

Tektronix

Programmable DC Electronic Load, 500V, 30A, 750W

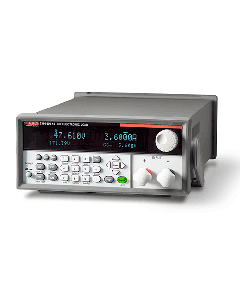

main product photo

This item is in stock and can be delivered in 3-5 business days

Contact our team for details on [email protected]

Series 2380 programmable DC electronic loads can sink a wide range of voltages and currents. The 750W Model 2380- 500 30 can accept up to 500V or 30A. These single-output, stand-alone electronic loads are cost-effective and self-contained.

These DC electronic loads can operate in constant current (CC), constant voltage (CV), constant resistance (CR), or constant power (CP) mode. They can also be configured to provide a dynamically changing load to the DC source with load switching times as fast as 25kHz. Versatile internal, external, and remote triggering options allow synchronising the dynamic load behaviour with other events.


Contact us for lead time

Contact our team for stock availability and product options.

Price £3,245.20
Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more
[email protected]
+44 330 313 3220
More Information
Attribute Value
Benefits
  • Enable users to test their devices under multiple working modes using one instrument
  • Provides high confidence in the readings
  • Enable users to validate the transient performance of DC power sources when subjected to high speed load changes
  • Provides a fast and accurate way to conduct complicated test steps with internal and external synchronization events
  • Covers a wide range of applications using one instrument
  • Ensures the protection of the DUT and the Series 2380 electronic from damage
  • Meet different test interface needs
Manufacturer Product Family 2380
Key Features
  • Multiple operation modes: constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CP)
  • 0.1 mV/0.01mA voltage/current readback resolution and 0.025%/0.05% voltage/current readback accuracy
  • Up to 25 kHz dynamic cycling mode with adjustable slew rate
  • List mode with up to 7 groups of list files
  • Diverse test modes: battery test mode, LED simulated load test mode, voltage rise/fall time measurement mode, over current/power protection test mode
  • Multiple built-in protection functions: over temperature protection(OTP), over voltage protection(OVP), over current protection(OCP), over power protection(OPP), reverse voltage protection(RVP)
  • Built-in GPIB, USB, RS232 interfaces
Number of outputs 1.0000
Operational Mode CV, CC, CR, CP
Input Current 30 A
Maximum Voltage 500 V
Power 750 W
Connectivity GPIB, USB, RS234
More Information
Attribute Value
Data Sheet Click here to view
