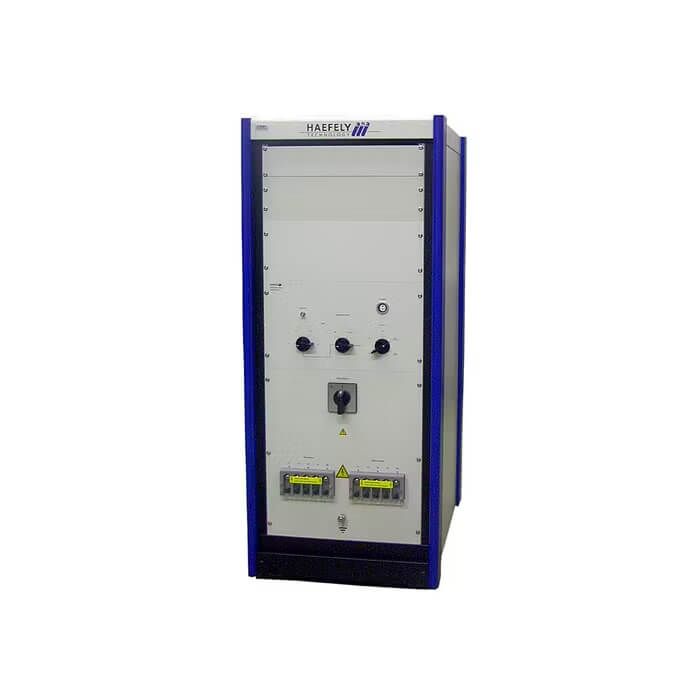

The Haefely FP-SURGE 100M2 for testing 3-phase AC and DC power ports in accordance to IEC and EN standards

IEC and EN standards cover testing of 3 phase AC and DC power ports. They include recommendations for the coupling and decoupling component values within the CDN. These values are largely based on the European model for AC power lines. FP-SURGE 100M2 includes all the IEC and EN requirements with manual coupling path switching

The Haefely FP-SURGE 100M2 EUT output has specially designed HV terminals, which provide enhanced personnel safety in relation to the high voltage impulse.

In December 2005, the IEC 61000-4-5 Edition 2 was approved. This new edition 2 defines the maximum voltage drop due to the decoupling inductors. This requires different decoupling inductors depending on the EUT current. The higher the current, the lower the inductance must be.

The FP-SURGE 100M2 is compliant to edition 2. The ANSI standards C62.41 and C62.45 contain much of the same information as the IEC, but are based on the American experience with AC power lines. No requirements about the voltage drop across the decoupling inductors are included.

Key Features

• Combination wave 1.2/50us – 8/20us
• Ring wave 100kHz
• 8kV impulse voltage
• Line voltage 690Vac phase-phase
• 100A EUT Current per phase
• Phase angle synchronisation for each coupling path
• Manual selection of coupling elements and coupling path
• Designed to meet and exceed the requirements of IEC, EN, and ANSI tests for power line applications
• Synchronises impulses with the selected coupling path
• Interlocked HV connections allow your operators to test safely and easily
• Both AC and DC loads up to 100A per phase can be connected through the FP-SURGE 100M2
• Careful component selection ensures that the FP-SURGE 100M2 will continue to operate under the most strenuous testing regime
• Upgrade Possible – Previously delivered FP-SURGE 100M couplers can be upgraded by Haefely, please ask our team for details

For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
