2520

2520

Keithley Instruments

Pulsed Laser Diode Test System with Remote Test Head

main product photo

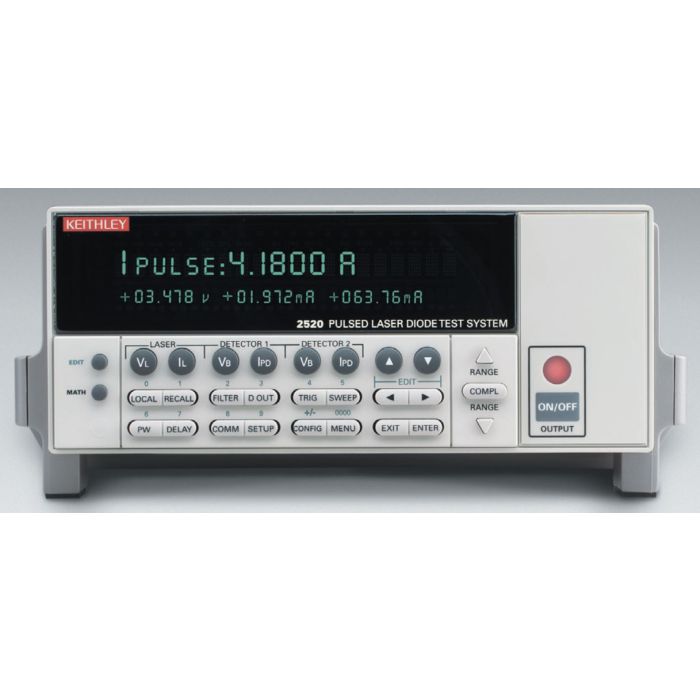

The Model 2520 Pulsed Laser Diode Test System is an integrated, synchronised system for testing laser diodes early in the manufacturing process, when proper temperature control cannot be easily achieved. The Model 2520 provides all sourcing and measurement capabilities needed for pulsed and continuous LIV (light-currentvoltage) testing of laser diodes in one compact, half-rack instrument.

The tight synchronisation of source and measure capabilities ensures high measurement accuracy, even when testing with pulse widths as short as 500ns.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more
[email protected]
+44 330 313 3220
More Information
Attribute Value
Manufacturer Product Family Keithley Optical SourceMeter Instruments
Key Features
  • Simplifies laser diode LIV testing prior to packaging or active temperature control
  • Integrated solution for in-process LIV production testing of laser diodes at the chip or bar level
  • Sweep can be programmed to stop on optical power limit
  • Combines high accuracy source and measure capabilities for pulsed and DC testing
  • Synchronised DSP based measurement channels ensure highly accurate light intensity and voltage measurements
  • Programmable pulse on time from 500ns to 5ms up to 4% duty cycle
  • Pulse capability up to 5A, DC capability up to 1A
  • 14-bit measurement accuracy on three measurement channels (VF, front photodiode, back photodiode)
  • Measurement algorithm increases the pulse measurement’s signal-tonoise ratio
  • Up to 1000-point sweep stored in buffer memory eliminates GPIB traffic during test, increasing throughput
  • Digital I/O binning and handling operations
  • IEEE-488 and RS -232 interfaces
Maximum Voltage 10 V
Applications
  • Telecommunication laser diodes
  • Optical storage read/write head laser diodes
  • Vertical Cavity Surface-Emitting Lasers (VCSELs)
  • Thermal impedance
  • Junction temperature response
Maximum Current 5A
Measurement Resolution 700nA / 0.33mV
Power 50 W
Series Optical SMU for Laser Diode
Channels 1
More Information
Attribute Value
Data Sheet Click here to view
