3481
3481
Hioki
Voltage Detector
Non-Metallic Contact Voltage Detector with LED Light

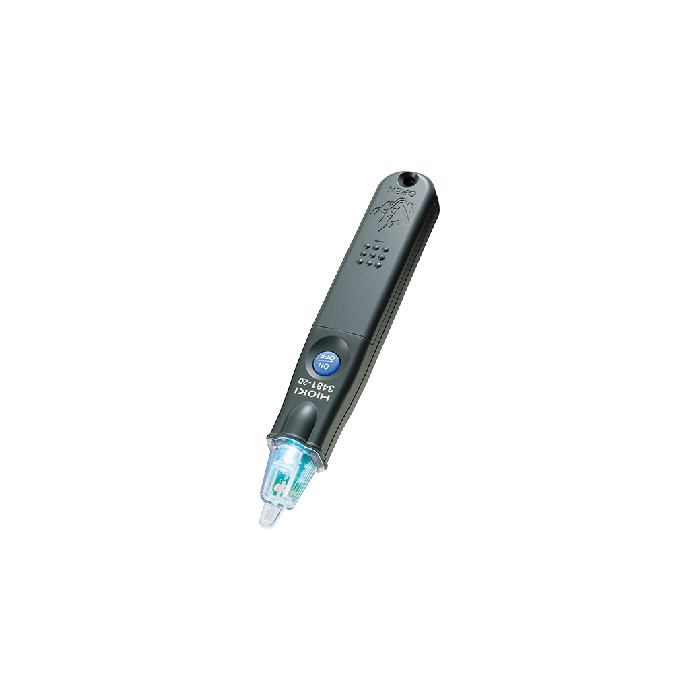

Hioki leads the industry in non-metallic contact test and measurement technology that promotes safety on the worksite. The Hioki 3481 is a pen-style, non-metallic contact voltage detector with a bright LED light that promotes safety and work efficiency even in dim worksites. When voltage is detected, the LED lights red along with an audio signal.
Key Features
- Non-contact detection of AC voltage from 40 V to 600 V with bright LED light
- Pen-style, compact detector with pocket clip
- Both visual and audible voltage detection indication
- Meets safety standards for CAT IV 600 V environments
- Prevent dead batteries with battery self-check function and auto power-off function
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Power Supply | LR44 button alkaline batteries ×3, Continuous use: 5 hr (Power ON standby state) |
Included Accessories | Instruction manual ×1, LR44 button alkaline batteries ×3 (for trial purposes only) |
Dimensions and Weight | 20 mm (0.79 in)W× 126 mm (4.96 in)H× 15 mm (0.59 in)D (excluding projections), 30 g (1.1 oz) (including LR44 button alkaline batteries) |
Battery Check | White LED is dim or out when the batteries are low. |
Measurement Function | Voltage detection |
Operating Voltage Range |
40 V to 600 V AC (When brought into contact with a 2 mm^2 insulated cable equivalent to 600 V polyvinyl chloride insulated wire) Maximum sensitivity variable range 40 V to 80 V AC (80 V at the time of shipment) |
Operating Frequency | 50 Hz/ 60 Hz |
Pilot Light | Red LED lights up and the buzzer sounds when the wire is live |
Auto Power Off | The power will be turned off automatically if the instrument remains idle for 3 minutes after the power is turned on. |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
