Hioki FT6380-50 Clamp On Earth Tester | APC Technology Group

FT6380-50

FT6380-50

Hioki

Clamp On Earth Tester

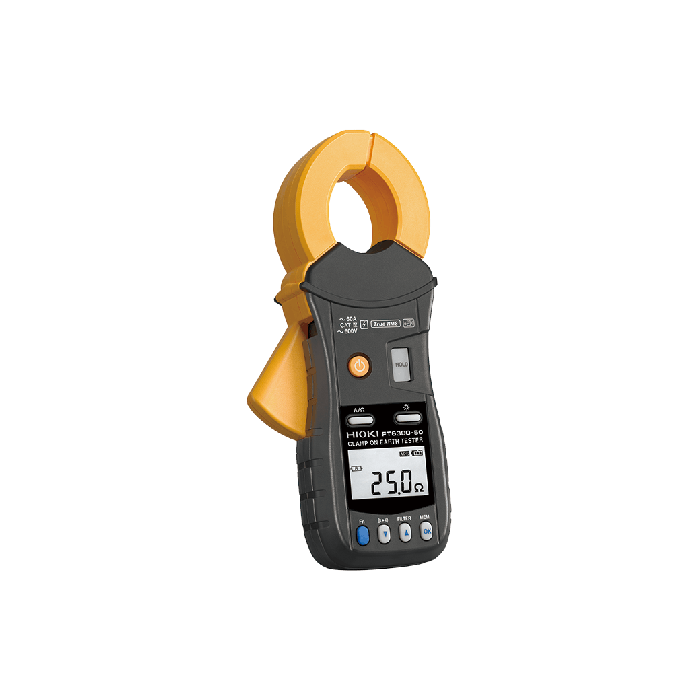

Easy Pole Clamp-On Ground Resistance Tester with Super Slim Jaw

The FT6380-50 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, and also provide AC current measurement functionality and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A.

CAT IV 600 V

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Earth resistance measurement for multi-grounded systems
  • Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
  • Measure load current up to 60.0 A range
  • Clamp at the narrowest point
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply LR6 alkaline battery × 2
Included Accessories Carrying case, Resistance check loop (1 Ω±2%, 25Ω±1%), Strap, LR6 alkaline battery × 2, Instruction manual
Display LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec.
Dimensions and Weight 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz)
Other Functions Data hold, Backlight, Filter, Auto power save, Wireless communication (without Z3210 installed))
Maximum Rated Terminal-to-Ground Voltage 600 VAC measurement category IV (anticipated transient overvoltage 8000 V)
Dustproof and Waterproof IP40 (EN60529) With Jaws Closed
AC Current Range

20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA

Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)

Harmonic Levels

[With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio

*Harmonics can be displayed with our free app GENNECT Cross.

Continuous Operating Time

Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed)

Approx. 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications)

Memory Function 2000 data
Measurement Function

Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated

Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.

Earthing Resistance Range

0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω

Accuracy: ±1.5 % rdg. ±0.02 Ω

Maximum Input Current (Current Measurement) 100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz/60 Hz, requires derating at frequency)
Alarm Function For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold.
Maximum Measurable Conductor Diameter φ 32 mm (1.26 in)
More Information
Attribute Value
Data Sheet Click here to view
